Vector Geometry and Proof

  • 6 exam questions
  • 19 marks
  • 9 quick checks
  1. 1 Write down [2 marks]

    In the triangle \(OAB\), \(\overrightarrow{OA} = \mathbf{a}\) and \(\overrightarrow{OB} = \mathbf{b}\). Write down (a) \(\overrightarrow{AO}\), (b) \(\overrightarrow{AB}\).

    Show answerHide answer

    Model answer

    (a) \(\overrightarrow{AO} = -\mathbf{a}\). (b) \(\overrightarrow{AB} = \overrightarrow{AO} + \overrightarrow{OB} = -\mathbf{a} + \mathbf{b} = \mathbf{b} - \mathbf{a}\).

    Mark scheme

    • (a) \(-\mathbf{a}\) — B1
    • (b) \(\mathbf{b} - \mathbf{a}\) — B1
  2. 2 Find [5 marks]

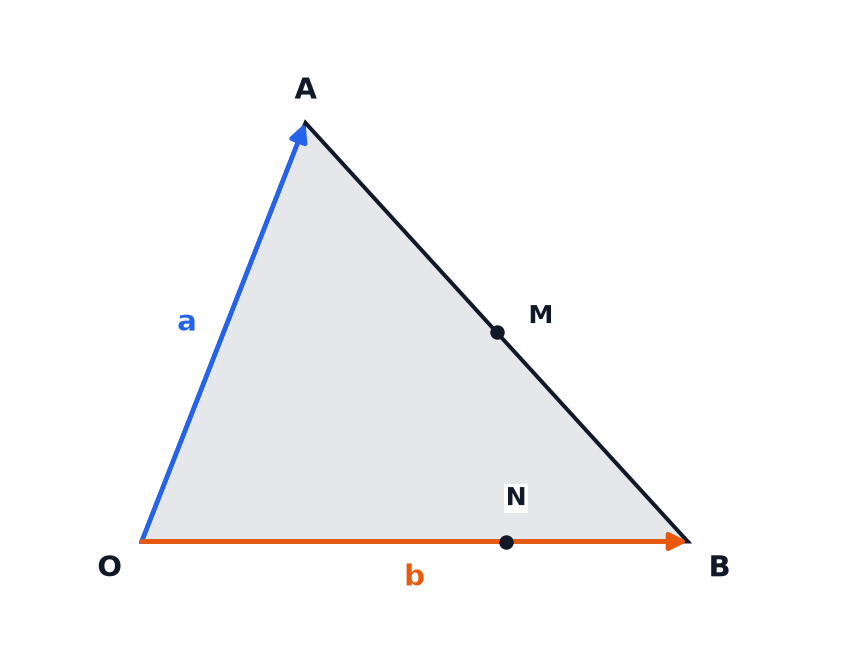

    \(OAB\) is a triangle with \(\overrightarrow{OA} = \mathbf{a}\) and \(\overrightarrow{OB} = \mathbf{b}\). \(M\) is the midpoint of \(AB\), and \(N\) is the point on \(OB\) with \(ON = \dfrac{2}{3}OB\). (a) Find \(\overrightarrow{AB}\) in terms of \(\mathbf{a}\) and \(\mathbf{b}\). (1 mark) (b) Find \(\overrightarrow{OM}\) in terms of \(\mathbf{a}\) and \(\mathbf{b}\). (2 marks) (c) Find \(\overrightarrow{MN}\) in terms of \(\mathbf{a}\) and \(\mathbf{b}\). (2 marks)

    Triangle OAB with OA equal to a and OB equal to b, the midpoint M of AB and the point N on OB with ON equal to two thirds of OB.
    Show answerHide answer

    Model answer

    (a) \(\overrightarrow{AB} = \mathbf{b} - \mathbf{a}\). (b) \(\overrightarrow{OM} = \mathbf{a} + \dfrac{1}{2}(\mathbf{b} - \mathbf{a}) = \dfrac{1}{2}\mathbf{a} + \dfrac{1}{2}\mathbf{b}\). (c) \(\overrightarrow{ON} = \dfrac{2}{3}\mathbf{b}\), so \(\overrightarrow{MN} = \overrightarrow{ON} - \overrightarrow{OM} = \dfrac{2}{3}\mathbf{b} - \dfrac{1}{2}\mathbf{a} - \dfrac{1}{2}\mathbf{b} = \dfrac{1}{6}\mathbf{b} - \dfrac{1}{2}\mathbf{a}\).

    Mark scheme

    • (a) \(\mathbf{b} - \mathbf{a}\) — B1
    • (b) \(\mathbf{a} + \dfrac{1}{2}(\mathbf{b} - \mathbf{a})\) or \(\overrightarrow{OA} + \dfrac{1}{2}\overrightarrow{AB}\) — M1
    • (b) \(\dfrac{1}{2}\mathbf{a} + \dfrac{1}{2}\mathbf{b}\) — A1
    • (c) \(\overrightarrow{ON} - \overrightarrow{OM}\) or \(\overrightarrow{MO} + \overrightarrow{ON}\) — M1
    • (c) \(\dfrac{1}{6}\mathbf{b} - \dfrac{1}{2}\mathbf{a}\) — A1
  3. 3 Prove [3 marks]

    \(\overrightarrow{OA} = \mathbf{a}\), \(\overrightarrow{OB} = \mathbf{b}\) and \(\overrightarrow{OC} = 3\mathbf{b} - 2\mathbf{a}\). Prove that \(A\), \(B\) and \(C\) lie on a straight line.

    Show answerHide answer

    Model answer

    \(\overrightarrow{AB} = \mathbf{b} - \mathbf{a}\) and \(\overrightarrow{BC} = -\mathbf{b} + 3\mathbf{b} - 2\mathbf{a} = 2\mathbf{b} - 2\mathbf{a} = 2\overrightarrow{AB}\). The vectors are parallel and share the point \(B\), so \(A\), \(B\) and \(C\) are on a straight line.

    Mark scheme

    • \(\overrightarrow{AB} = \mathbf{b} - \mathbf{a}\) — M1
    • \(\overrightarrow{BC} = 2\mathbf{b} - 2\mathbf{a}\) or \(2\overrightarrow{AB}\) — M1
    • Parallel and a common point, so collinear — C1
  4. 4 Find [3 marks]

    \(\overrightarrow{OA} = \mathbf{a}\) and \(\overrightarrow{OB} = \mathbf{b}\). \(P\) is the point on \(AB\) such that \(AP : PB = 2 : 3\). Find \(\overrightarrow{OP}\) in terms of \(\mathbf{a}\) and \(\mathbf{b}\).

    Show answerHide answer

    Model answer

    \(AP = \dfrac{2}{5}AB\), so \(\overrightarrow{AP} = \dfrac{2}{5}(\mathbf{b} - \mathbf{a})\). Then \(\overrightarrow{OP} = \mathbf{a} + \dfrac{2}{5}(\mathbf{b} - \mathbf{a}) = \dfrac{3}{5}\mathbf{a} + \dfrac{2}{5}\mathbf{b}\).

    Mark scheme

    • \(\overrightarrow{AP} = \dfrac{2}{5}\overrightarrow{AB}\) — M1
    • \(\mathbf{a} + \dfrac{2}{5}(\mathbf{b} - \mathbf{a})\) — M1
    • \(\dfrac{3}{5}\mathbf{a} + \dfrac{2}{5}\mathbf{b}\) — A1
  5. 5 Show that [3 marks]

    \(\overrightarrow{OA} = \mathbf{a}\) and \(\overrightarrow{OB} = \mathbf{b}\). \(X\) is the point such that \(\overrightarrow{OX} = 3\mathbf{a}\), and \(Y\) is the point such that \(\overrightarrow{OY} = 3\mathbf{b}\). Show that \(XY\) is parallel to \(AB\).

    Show answerHide answer

    Model answer

    \(\overrightarrow{XY} = -3\mathbf{a} + 3\mathbf{b} = 3(\mathbf{b} - \mathbf{a})\). Since \(\overrightarrow{AB} = \mathbf{b} - \mathbf{a}\), \(\overrightarrow{XY} = 3\overrightarrow{AB}\), so the lines are parallel.

    Mark scheme

    • \(\overrightarrow{XY} = 3\mathbf{b} - 3\mathbf{a}\) — M1
    • \(\overrightarrow{XY} = 3\overrightarrow{AB}\) or \(3(\mathbf{b} - \mathbf{a})\) — M1
    • A multiple, so parallel — C1
  6. 6 Show that [3 marks]

    \(\overrightarrow{AB} = \begin{pmatrix} 2 \\ 3 \end{pmatrix}\) and \(\overrightarrow{BC} = \begin{pmatrix} 6 \\ 9 \end{pmatrix}\). Show that \(A\), \(B\) and \(C\) are on a straight line.

    Show answerHide answer

    Model answer

    \(\begin{pmatrix} 6 \\ 9 \end{pmatrix} = 3 \times \begin{pmatrix} 2 \\ 3 \end{pmatrix}\), so \(\overrightarrow{BC} = 3\overrightarrow{AB}\). The vectors are parallel and share the point \(B\), so \(A\), \(B\) and \(C\) are on a straight line.

    Mark scheme

    • \(\overrightarrow{BC} = 3\overrightarrow{AB}\) — M1
    • Parallel — A1
    • Common point \(B\), so collinear — C1

Quick check

  1. 1

    \(\overrightarrow{OA} = \mathbf{a}\) and \(\overrightarrow{OB} = \mathbf{b}\). What is \(\overrightarrow{AB}\)?

    1. A\(\mathbf{a} - \mathbf{b}\)
    2. B\(\mathbf{a} + \mathbf{b}\)
    3. C\(\mathbf{b} - \mathbf{a}\)
    4. D\(-\mathbf{a} - \mathbf{b}\)
    Show answerHide answer

    C: \(\mathbf{b} - \mathbf{a}\)

    Go from \(A\) to \(O\) (\(-\mathbf{a}\)) and then to \(B\) (\(\mathbf{b}\)).

  2. 2

    \(\overrightarrow{OA} = \mathbf{a}\). What is \(\overrightarrow{AO}\)?

    1. A\(\mathbf{a}\)
    2. B\(-\mathbf{a}\)
    3. C\(2\mathbf{a}\)
    4. D\(\dfrac{1}{2}\mathbf{a}\)
    Show answerHide answer

    B: \(-\mathbf{a}\)

    Going backwards reverses the vector.

  3. 3

    \(\overrightarrow{OA} = \mathbf{a}\) and \(\overrightarrow{OB} = \mathbf{b}\). \(M\) is the midpoint of \(AB\). What is \(\overrightarrow{OM}\)?

    1. A\(\dfrac{1}{2}(\mathbf{a} + \mathbf{b})\)
    2. B\(\dfrac{1}{2}(\mathbf{b} - \mathbf{a})\)
    3. C\(\mathbf{a} + \mathbf{b}\)
    4. D\(\dfrac{1}{2}\mathbf{a}\)
    Show answerHide answer

    A: \(\dfrac{1}{2}(\mathbf{a} + \mathbf{b})\)

    \(\overrightarrow{OM} = \mathbf{a} + \dfrac{1}{2}(\mathbf{b} - \mathbf{a}) = \dfrac{1}{2}(\mathbf{a} + \mathbf{b})\).

  4. 4

    \(P\) is on \(AB\) with \(AP : PB = 1 : 2\). What fraction of \(AB\) is \(AP\)?

    1. A\(\dfrac{1}{2}\)
    2. B\(\dfrac{2}{3}\)
    3. C\(\dfrac{1}{4}\)
    4. D\(\dfrac{1}{3}\)
    Show answerHide answer

    D: \(\dfrac{1}{3}\)

    There are \(1 + 2 = 3\) parts, and \(AP\) is 1 of them.

  5. 5

    \(\overrightarrow{OA} = \mathbf{a}\), \(\overrightarrow{OB} = \mathbf{b}\), and \(P\) is on \(AB\) with \(AP : PB = 1 : 2\). What is \(\overrightarrow{OP}\)?

    1. A\(\dfrac{1}{3}\mathbf{a} + \dfrac{2}{3}\mathbf{b}\)
    2. B\(\dfrac{1}{3}(\mathbf{b} - \mathbf{a})\)
    3. C\(\dfrac{2}{3}\mathbf{a} + \dfrac{1}{3}\mathbf{b}\)
    4. D\(\mathbf{a} + \dfrac{1}{3}\mathbf{b}\)
    Show answerHide answer

    C: \(\dfrac{2}{3}\mathbf{a} + \dfrac{1}{3}\mathbf{b}\)

    \(\overrightarrow{OP} = \mathbf{a} + \dfrac{1}{3}(\mathbf{b} - \mathbf{a}) = \dfrac{2}{3}\mathbf{a} + \dfrac{1}{3}\mathbf{b}\).

  6. 6

    How do you show that two lines are parallel using vectors?

    1. AShow that the vectors have the same length
    2. BShow that one vector is a multiple of the other
    3. CShow that the vectors add to zero
    4. DShow that the vectors meet at a point
    Show answerHide answer

    B: Show that one vector is a multiple of the other

    Parallel vectors are scalar multiples of each other.

  7. 7

    \(\overrightarrow{AB} = 2\overrightarrow{BC}\). What does this show?

    1. A\(A\), \(B\) and \(C\) are on a straight line
    2. B\(B\) is the midpoint of \(AC\)
    3. C\(AB\) is perpendicular to \(BC\)
    4. D\(ABC\) is an isosceles triangle
    Show answerHide answer

    A: \(A\), \(B\) and \(C\) are on a straight line

    The vectors are parallel and share the point \(B\), so the three points are collinear.

  8. 8

    \(\overrightarrow{OA} = \mathbf{a}\), \(\overrightarrow{OB} = \mathbf{b}\) and \(\overrightarrow{OC} = 3\mathbf{b} - 2\mathbf{a}\). What is \(\overrightarrow{BC}\)?

    1. A\(3\mathbf{b} - 2\mathbf{a}\)
    2. B\(2\mathbf{a} - 2\mathbf{b}\)
    3. C\(4\mathbf{b} - 2\mathbf{a}\)
    4. D\(2\mathbf{b} - 2\mathbf{a}\)
    Show answerHide answer

    D: \(2\mathbf{b} - 2\mathbf{a}\)

    \(\overrightarrow{BC} = -\mathbf{b} + 3\mathbf{b} - 2\mathbf{a} = 2\mathbf{b} - 2\mathbf{a}\).

  9. 9

    What is the length of the vector \(\begin{pmatrix} 5 \\ 12 \end{pmatrix}\)?

    1. A\(17\)
    2. B\(7\)
    3. C\(13\)
    4. D\(60\)
    Show answerHide answer

    C: \(13\)

    \(\sqrt{5^2 + 12^2} = \sqrt{169} = 13\).
