AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Mains electricity and safety

Electricity

Lesson 5 of 10

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Warm-up

Electricity

Lesson 5 of 10

Answer each one, then check.

1

What is the unit of frequency?

2

What colour is the earth wire?

3

What does a fuse do?

4

What does AC stand for?

5

What is the potential difference of the mains?

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Warm-up - Answers

Electricity

Lesson 5 of 10

1

What is the unit of frequency?

Hertz (Hz)

2

What colour is the earth wire?

Green and yellow stripes

3

What does a fuse do?

Melts and breaks the circuit if the current is too large

4

What does AC stand for?

Alternating current

5

What is the potential difference of the mains?

About 230 V

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Learning Objectives

Electricity

Lesson 5 of 10

1

State the frequency and potential difference of UK mains.

2

Explain the difference between dc and ac.

3

Identify the live, neutral and earth wires by colour and function.

4

Explain why a live wire can be dangerous even when a switch is open, and the dangers of connecting live to earth.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Electricity

Lesson 5 of 10

MAINS ELECTRICITY

Mains electricity in the UK is an alternating supply of about 230 V with a frequency of 50 Hz.

Direct pd (dc) always pushes charge in the same direction. Alternating pd (ac) repeatedly changes direction.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

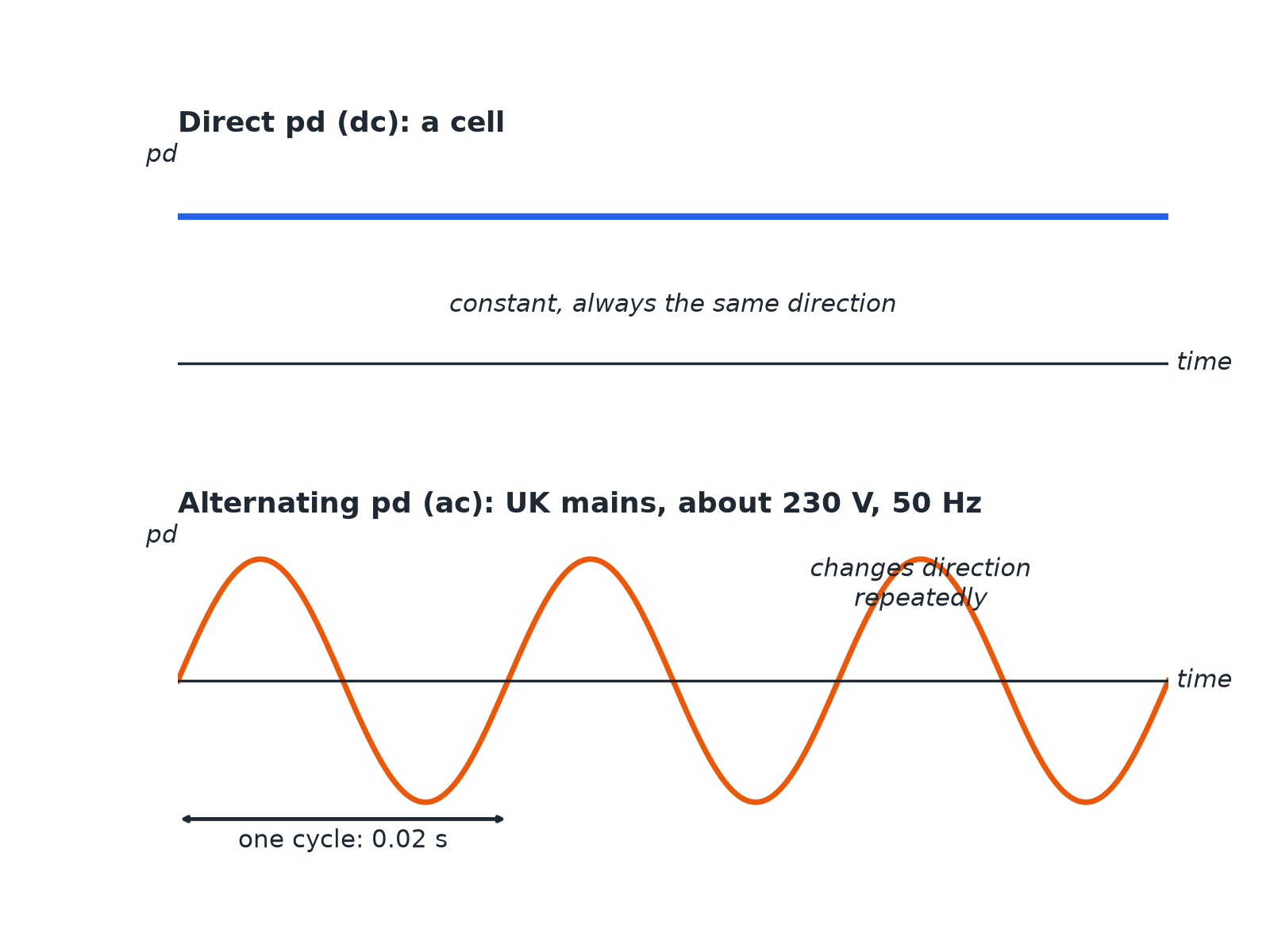

Direct and Alternating pd

Electricity

Lesson 5 of 10

Alternating pd changes direction 50 times each second.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

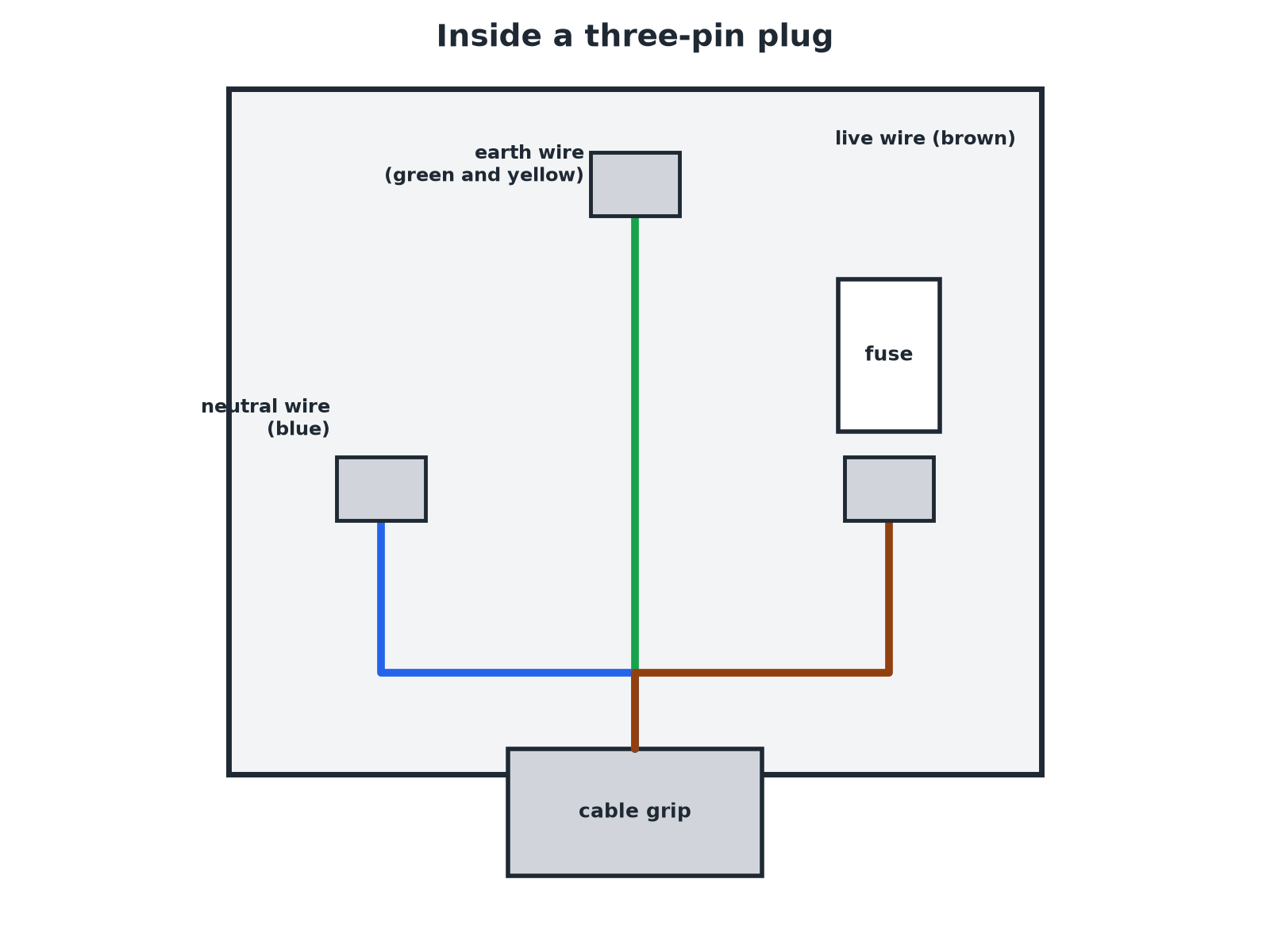

A Three-pin Plug

Electricity

Lesson 5 of 10

Colour coding makes the wires easy to identify.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

The Three-Core Cable

Electricity

Lesson 5 of 10

Learn the colour, name and job of each wire.

Wire

Colour

Job

Potential difference

Live

Brown

Carries the alternating pd from the supply

About 230 V

Neutral

Blue

Completes the circuit

At or close to 0 V

Earth

Green and yellow stripes

Safety wire: stops the appliance becoming live

0 V; only carries a current if there is a fault

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Why the Live Wire Is Dangerous

Electricity

Lesson 5 of 10

Explain why touching a live wire can be dangerous even when the switch in the appliance is open.

1

Switch position

If the switch is in the neutral wire, the live wire stays connected to the appliance

2

Potential difference

The live wire is at about 230 V compared with earth

3

Danger

A person touching it can provide a path to earth, and a current flows through the person

ANSWER

The live wire is at 230 V even when the switch is open (if the switch is in the neutral); touching it can give a dangerous current.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Live and Earth

Electricity

Lesson 5 of 10

Explain the dangers of a connection between the live wire and earth.

1

Low resistance path

A very large current can flow to earth

2

Effects

The wires heat up, which can cause a fire; a person may be electrocuted

3

Earth wire

It gives a safe path so a fuse blows or the trip operates

ANSWER

A connection between live and earth can cause a large current, overheating, fires or electric shock.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Safety Tips

Electricity

Lesson 5 of 10

Exam-ready reasons.

Fuse and switch

They go in the live wire so the appliance is disconnected from 230 V.

Earth wire

Connected to the metal case so that if the live wire touches it, a large current flows and the fuse melts.

Double-insulated appliances

Have no earth wire because they have a plastic case.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Key Terms

Electricity

Lesson 5 of 10

Direct pd (dc)

A pd that always pushes charge in the same direction.

Alternating pd (ac)

A pd that repeatedly changes direction.

Frequency

The number of cycles per second, in hertz.

Live wire

The wire carrying the alternating pd, at about 230 V.

Neutral wire

The wire that completes the circuit, at about 0 V.

Earth wire

The safety wire, at 0 V, connected to the metal case.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Electricity

Lesson 5 of 10

YOUR TASK

Plug Detective

10 minutes

A plug's wires are brown, blue and green and yellow. State the name of each wire and its job. Then say why a switch should go in the live wire.

1

Name each wire.

2

Say what it does.

WHAT A GOOD ANSWER SHOWS

Brown: live, carries 230 V. Blue: neutral, completes the circuit. Green and yellow: earth, safety wire. A switch in the live wire disconnects the appliance from the 230 V supply.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Can I...?

Electricity

Lesson 5 of 10

State the frequency and pd of UK mains.

Explain dc and ac.

Name the three wires and their colours.

State the job of each wire.

Say the live wire is at 230 V.

Explain why a live wire is dangerous with the switch open.

Explain the dangers of live-to-earth connections.

Explain the purpose of the earth wire.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Summary & Exam Focus

UK mains: 230 V, 50 Hz, ac.

Live: brown; neutral: blue; earth: green and yellow.

Earth wire only carries current if there is a fault.

Switches go in the live wire.

EXAM FOCUS

Give the colour of the live wire and state its potential difference compared with earth. (2 marks)

Brown, and about 230 V.
