Specific latent heat.pptx

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Specific latent heat

Particle model of matter

Lesson 4 of 6

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Warm-up

Particle model of matter

Lesson 4 of 6

Answer each one, then check.

1

What happens to temperature during melting?

2

What is the unit of energy?

3

What is the equation for a temperature change?

4

Name the change from liquid to gas.

5

What is internal energy?

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Warm-up - Answers

Particle model of matter

Lesson 4 of 6

1

What happens to temperature during melting?

It stays constant

2

What is the unit of energy?

Joule

3

What is the equation for a temperature change?

ΔE = mcΔθ

4

Name the change from liquid to gas.

Boiling / evaporating

5

What is internal energy?

Total kinetic and potential energy of the particles

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Learning Objectives

Particle model of matter

Lesson 4 of 6

1

Define specific latent heat and distinguish fusion from vaporisation.

2

Apply E = mL.

3

Interpret heating and cooling graphs that include changes of state.

4

Distinguish specific heat capacity from specific latent heat.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Particle model of matter

Lesson 4 of 6

SPECIFIC LATENT HEAT

The specific latent heat of a substance is the energy needed to change the state of 1 kg of the substance with no change in temperature.

E = mL is given on the equation sheet. Specific latent heat of fusion: solid to liquid. Specific latent heat of vaporisation: liquid to gas. L is in J/kg.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

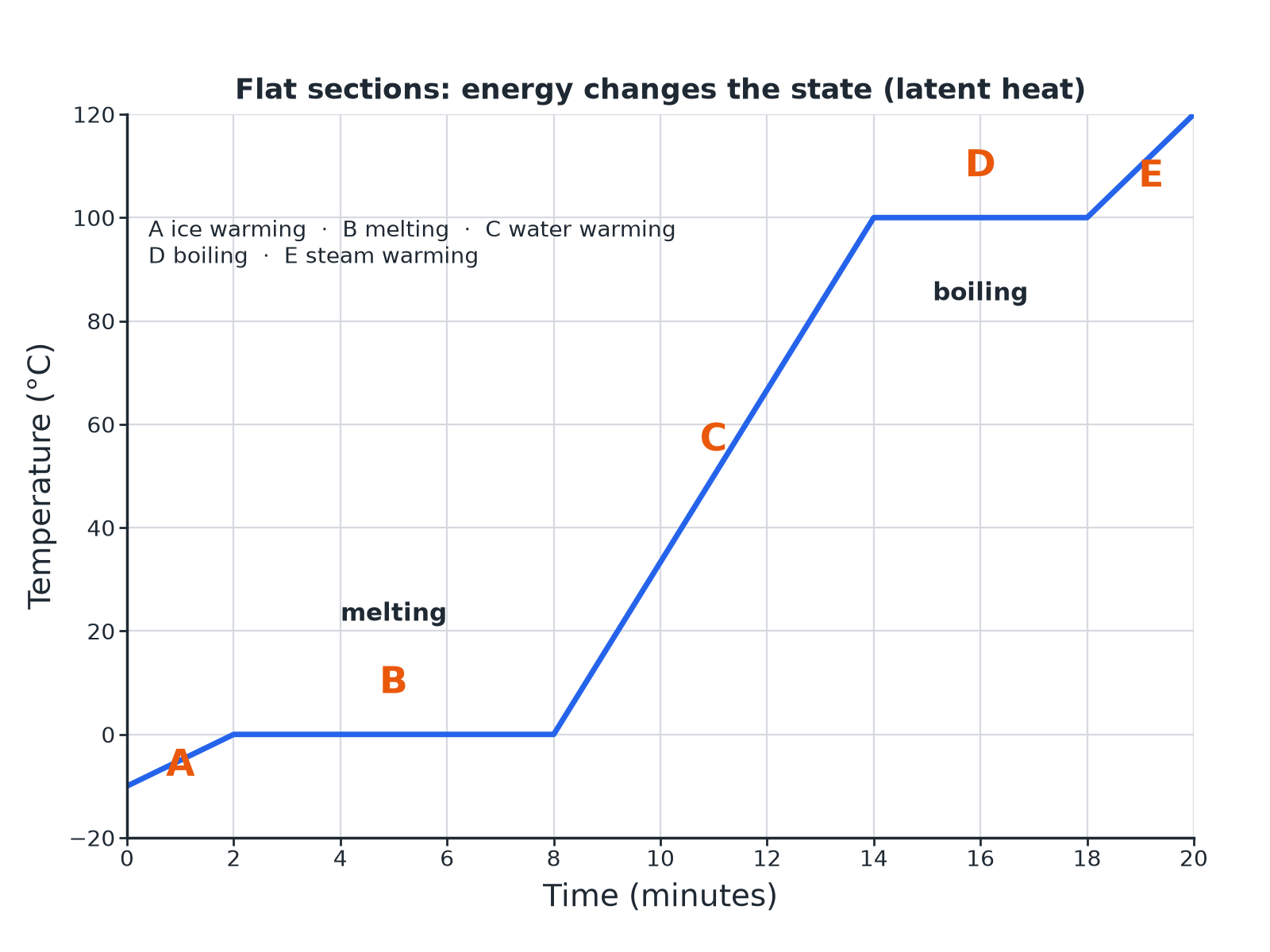

A Heating Curve

Particle model of matter

Lesson 4 of 6

Flat sections show a change of state.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Two Different Ideas

Particle model of matter

Lesson 4 of 6

SPECIFIC HEAT CAPACITY

• Energy to raise the temperature of 1 kg by 1 °C.

• The temperature changes.

• ΔE = mcΔθ; J/kg °C.

SPECIFIC LATENT HEAT

• Energy to change the state of 1 kg with no temperature change.

• The temperature stays the same.

• E = mL; J/kg.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Melting Ice

Particle model of matter

Lesson 4 of 6

Calculate the energy needed to melt 0.20 kg of ice at 0 °C. Specific latent heat of fusion of water = 334 000 J/kg.

1

Write the equation

E = mL

2

Substitute

E = 0.20 × 334 000

3

Answer

E = 66 800 J

ANSWER

66 800 J

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Boiling Water

Particle model of matter

Lesson 4 of 6

Calculate the energy to change 0.50 kg of water at 100 °C into steam. Specific latent heat of vaporisation = 2 260 000 J/kg.

1

Substitute

E = 0.50 × 2 260 000

2

Answer

E = 1 130 000 J

ANSWER

1 130 000 J (1.13 MJ)

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Reading the Graph

Particle model of matter

Lesson 4 of 6

Explain why the temperature stays constant during section B of the heating curve.

1

Energy is still supplied

The particles are gaining energy

2

Where it goes

It increases the potential energy of the particles as the bonds are broken

3

So

The average kinetic energy, and the temperature, stay the same

ANSWER

The energy supplied breaks the bonds (changing potential energy) so the temperature does not rise.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Why Steam Burns More

Particle model of matter

Lesson 4 of 6

A favourite exam idea.

Condensing

Steam at 100 °C condenses to water at 100 °C and releases a lot of latent heat.

Then

The water then cools and releases more energy.

So

Steam transfers more energy to skin than boiling water at the same temperature.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Key Terms

Particle model of matter

Lesson 4 of 6

Specific latent heat

Energy to change the state of 1 kg with no temperature change.

Latent heat of fusion

For solid to liquid.

Latent heat of vaporisation

For liquid to gas.

Heating curve

A temperature-time graph for a heated substance.

Constant temperature

Temperature that does not change during a change of state.

Potential energy

Energy stored due to the forces between particles.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Particle model of matter

Lesson 4 of 6

YOUR TASK

Read the Curve

12 minutes

On a heating curve for water there are flat sections at 0 °C and 100 °C. Explain what is happening in each and why the second is longer.

1

Name each change.

2

Compare the latent heats.

WHAT A GOOD ANSWER SHOWS

At 0 °C the ice is melting; at 100 °C the water is boiling. The boiling section is longer because the latent heat of vaporisation is much greater than the latent heat of fusion.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Can I...?

Particle model of matter

Lesson 4 of 6

State what specific latent heat is.

Distinguish fusion from vaporisation.

Use E = mL.

Read a heating curve.

Explain flat sections.

Distinguish c from L.

Explain steam burns.

Give units of L.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Summary & Exam Focus

E = mL.

Temperature is constant during a change of state.

Heating curves have flat sections at melting and boiling points.

Distinguish c and L.

EXAM FOCUS

Calculate the energy needed to melt 0.35 kg of ice at 0 °C. Specific latent heat of fusion = 334 000 J/kg. (2 marks)

Multiply mass by L.

openrevise.com
