Transverse and longitudinal waves.pptx

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Transverse and longitudinal waves

Waves

Lesson 1 of 12

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Warm-up

Waves

Lesson 1 of 12

Answer each one, then check.

1

What do waves transfer?

2

Give an example of a wave.

3

What is a medium?

4

What is a vibration?

5

What do sound waves travel through?

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Warm-up - Answers

Waves

Lesson 1 of 12

1

What do waves transfer?

Energy

2

Give an example of a wave.

Sound, light or water ripples

3

What is a medium?

The material a wave travels through

4

What is a vibration?

A repeated back-and-forth movement

5

What do sound waves travel through?

Solids, liquids and gases

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Learning Objectives

Waves

Lesson 1 of 12

1

Describe the difference between transverse and longitudinal waves.

2

Give examples of each.

3

Describe compressions and rarefactions.

4

Describe evidence that in ripples and sound it is the wave, not the water or air, that travels.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Waves

Lesson 1 of 12

TWO TYPES OF WAVE

In a transverse wave the vibrations are at right angles to the direction the wave travels. In a longitudinal wave the vibrations are parallel to the direction of travel.

Waves transfer energy (and information) from one place to another without transferring matter.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

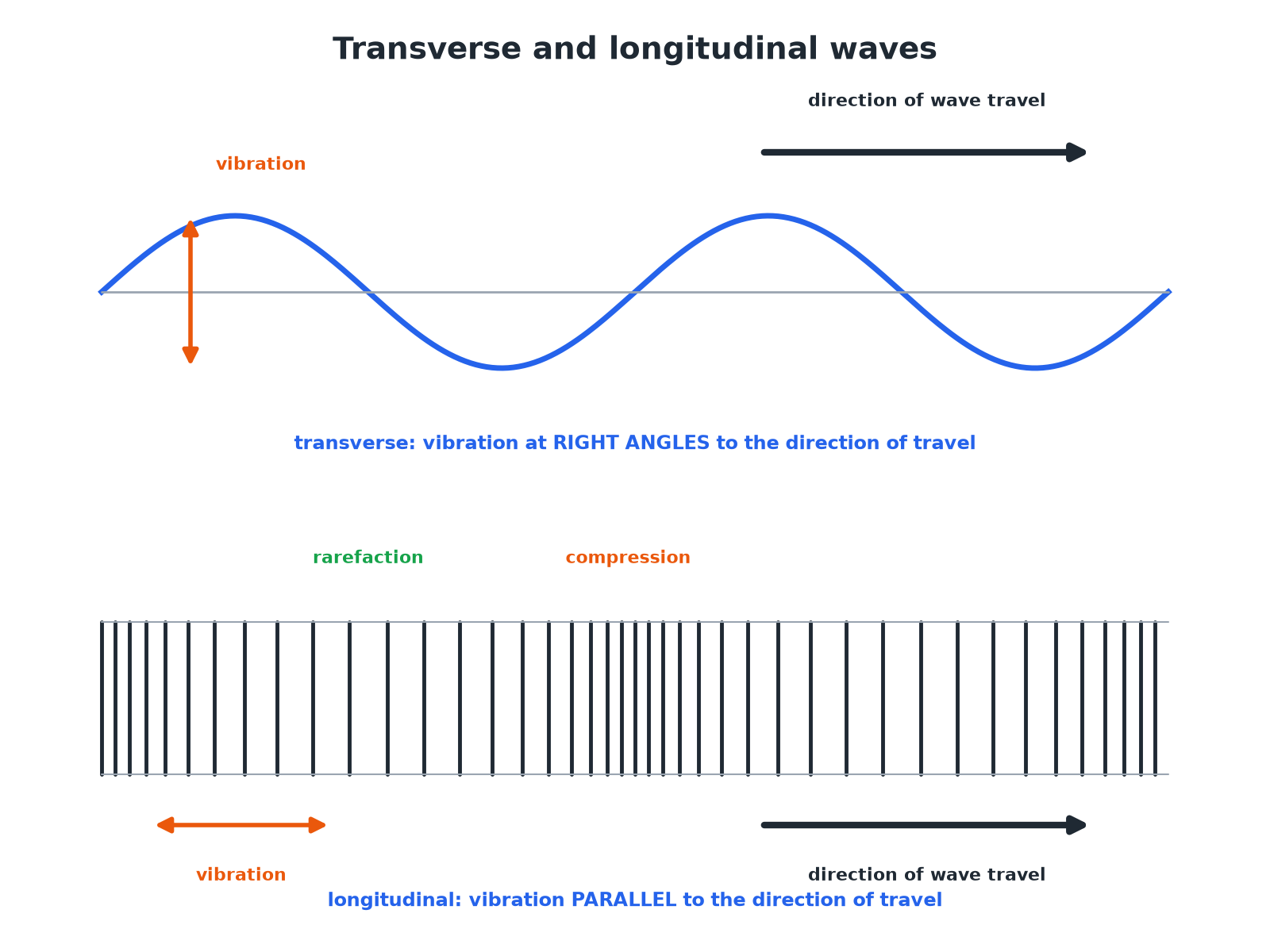

Transverse and Longitudinal Waves

Waves

Lesson 1 of 12

The direction of vibration compared with travel is the key difference.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Transverse or Longitudinal?

Waves

Lesson 1 of 12

TRANSVERSE

• Vibrations are at right angles to the direction of travel.

• Examples: ripples on water, electromagnetic waves, waves on a rope.

• Have crests and troughs.

LONGITUDINAL

• Vibrations are parallel to the direction of travel.

• Examples: sound waves, P-waves.

• Have compressions and rarefactions.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Evidence That the Wave Travels

Waves

Lesson 1 of 12

Describe evidence that in water ripples it is the wave, and not the water, that moves.

1

Float a cork on a pond

As ripples pass, the cork bobs up and down

2

Observe

The cork does not travel along with the wave

3

Conclusion

The water vibrates but does not move with the wave

ANSWER

The cork moves up and down in the same place, so the water itself does not travel.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Sound in Air

Waves

Lesson 1 of 12

Explain why sound waves are longitudinal.

1

Air particles

Vibrate backwards and forwards in the direction the wave travels

2

Compressions

Regions where the particles are pushed close together

3

Rarefactions

Regions where the particles are spread out

ANSWER

Sound is a longitudinal wave with compressions and rarefactions.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Key Points

Waves

Lesson 1 of 12

Learn these.

Energy, not matter

Waves transfer energy without transferring matter.

Medium

Mechanical waves need a medium; electromagnetic waves do not.

Sound evidence

Particles in air vibrate about fixed positions; smoke in a tube just vibrates back and forth.

Don't say

'The water moves along'. The water just moves up and down.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Key Terms

Waves

Lesson 1 of 12

Transverse wave

A wave with vibrations at right angles to the direction of travel.

Longitudinal wave

A wave with vibrations parallel to the direction of travel.

Compression

A region where particles are close together.

Rarefaction

A region where particles are spread out.

Medium

The material a wave travels through.

Oscillation

A back-and-forth movement.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Waves

Lesson 1 of 12

YOUR TASK

Wave Types

8 minutes

Classify each wave as transverse or longitudinal: (a) light (b) sound in air (c) ripples on a pond (d) a wave on a rope shaken up and down.

1

Is vibration at right angles?

2

Or parallel?

WHAT A GOOD ANSWER SHOWS

(a) Transverse (b) Longitudinal (c) Transverse (d) Transverse.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Can I...?

Waves

Lesson 1 of 12

Define transverse.

Define longitudinal.

Give examples.

Name compressions and rarefactions.

Describe the cork evidence.

Say waves transfer energy.

Explain sound in air.

Draw both wave types.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Summary & Exam Focus

Transverse: vibrations at right angles; longitudinal: parallel.

Sound is longitudinal; ripples are transverse.

Compressions and rarefactions in longitudinal waves.

The wave, not the medium, travels.

EXAM FOCUS

Describe the difference between a transverse wave and a longitudinal wave. (2 marks)

Direction of vibration relative to the direction of travel.
