Venn Diagrams and Set Notation

Using sets, Venn diagrams and set notation to organise data and find probabilities.

  • 9 key terms
  • All boards

Learning Objectives

  1. 1Use set notation: \(\in\), \(\cap\), \(\cup\), the complement \(A'\), and the universal set \(\xi\).
  2. 2Draw and complete a Venn diagram for two sets from given information.
  3. 3Use a Venn diagram to work out probabilities.
  4. 4Describe regions of a Venn diagram using set notation.

Sorting into overlapping groups

Many things belong to more than one group: a student can play football and tennis, or only one, or neither. A Venn diagram shows this with overlapping circles, and it is the best way to keep track of numbers in questions that say "both", "only" and "neither". The usual trap is to forget that a number given for a whole circle includes the overlap, so the key is to start from the middle and work outwards.

Set notation

Sets are collections of items, written inside curly brackets. Learn the symbols, as questions use them without explanation.

  • Universal set \(\xi\)

    Everything being considered, drawn as the rectangle round the circles.

  • Element \(\in\)

    \(3 \in A\) means 3 is a member of set \(A\).

  • Intersection \(A \cap B\)

    The items in both \(A\) and \(B\), the overlap.

  • Union \(A \cup B\)

    The items in \(A\) or \(B\) or both, everything inside either circle.

  • Complement \(A'\)

    The items not in \(A\), everything outside the circle for \(A\).

Sets of numbers

\(\xi = \{1, 2, 3, \ldots, 10\}\), \(A = \{2, 4, 6, 8, 10\}\) and \(B = \{3, 6, 9\}\). List the members of \(A \cap B\), \(A \cup B\) and \(A'\).

Show the solutionHide the solution
  1. 1 Intersection Only 6 is in both sets, so \(A \cap B = \{6\}\).
  2. 2 Union Put every member of either set in once: \(\{2, 3, 4, 6, 8, 9, 10\}\).
  3. 3 Complement The numbers from 1 to 10 that are not even are \(1, 3, 5, 7, 9\).
  4. 4 Count check \(n(A \cup B) = 7\), which is \(5 + 3 - 1\), because 6 is counted twice if you just add.

Answer\(A \cap B = \{6\}\), \(A \cup B = \{2, 3, 4, 6, 8, 9, 10\}\), \(A' = \{1, 3, 5, 7, 9\}\)

Filling in a Venn diagram

Work from the middle outwards, one step at a time.

  • Step 1: the overlap

    Start with the number who are in both groups.

  • Step 2: the rest of each circle

    Subtract the overlap from each circle's total. If 18 play football and 6 play both, 12 play football only.

  • Step 3: the outside

    Subtract everyone inside the circles from the grand total.

  • Step 4: check

    All the regions should add up to the total.

A Venn diagram from information

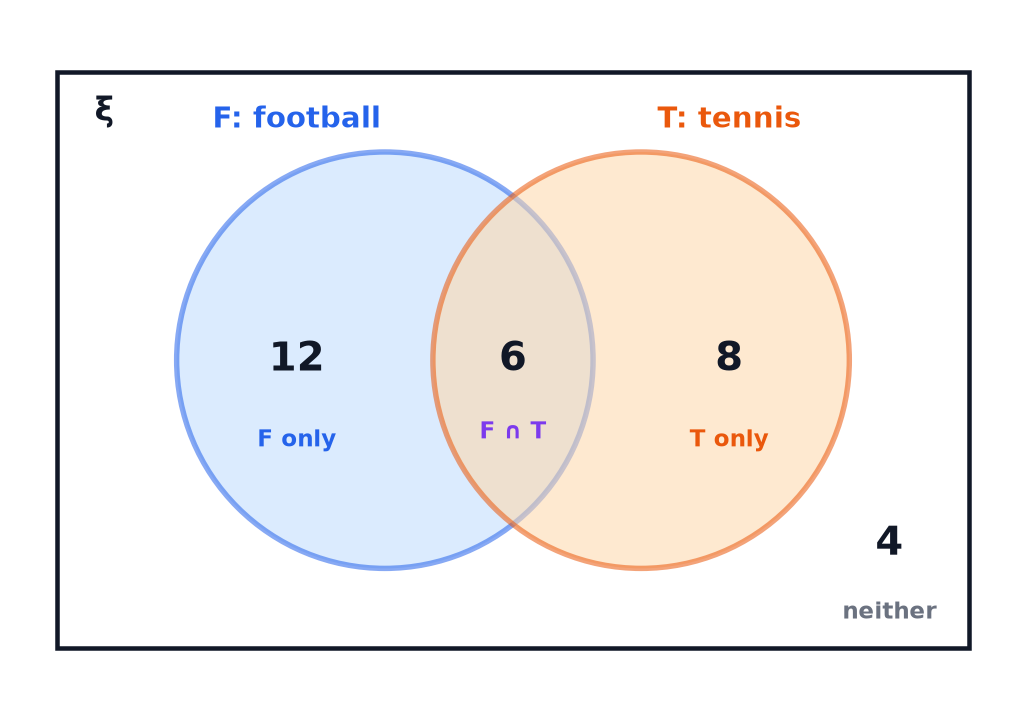

30 students are asked about football (\(F\)) and tennis (\(T\)). 18 play football, 14 play tennis and 6 play both. Work out how many play neither.

Show the solutionHide the solution
  1. 1 Overlap 6 play both.
  2. 2 Football only \(18 - 6 = 12\).
  3. 3 Tennis only \(14 - 6 = 8\).
  4. 4 Neither \(30 - (12 + 6 + 8) = 30 - 26 = 4\).

Answer4

Probability from a Venn diagram

The numbers in a region are the favourable outcomes, and the total is the number in the whole rectangle.

  • One region

    \(P(F \text{ only}) = \dfrac{12}{30} = \dfrac{2}{5}\).

  • A union

    \(P(F \cup T) = \dfrac{26}{30} = \dfrac{13}{15}\).

  • A complement

    \(P(\text{neither}) = \dfrac{4}{30} = \dfrac{2}{15}\).

  • A student is chosen

    The probability that a student chosen at random is in both sets is \(\dfrac{6}{30} = \dfrac{1}{5}\).

Three sets and describing regions (Higher tier)

The same method works with a third circle, and some questions ask for the notation of a shaded region.

  • Three circles

    Fill in the middle where all three overlap first, then the regions where two overlap, then the rest.

  • Shaded regions

    The region in \(A\) but not \(B\) can be written \(A \cap B'\). Everything except the overlap is \((A \cap B)'\).

  • Addition rule

    \(n(A \cup B) = n(A) + n(B) - n(A \cap B)\).

  • Checking

    After filling in, each circle's total should match the information in the question.

Set notation on the OCR exam

OCR's specification says that knowledge of the symbols for intersection, union and complement will not be required.

  • Words are used

    Questions are written with words such as both, either and not in, so a question about numbers in both sets is the same as one about the intersection.

  • Keep the idea

    The symbols are still used by the other boards and in later courses, so it helps to recognise them, but you can answer in words.

  • Venn diagrams are still needed

    Two-circle Venn diagrams are tested at both tiers, with more complex diagrams and conditional probabilities at Higher tier.

Test yourself

  1. 1

    What does \(A \cap B\) mean?

    Show answerHide answer

    The items that are in both \(A\) and \(B\).

  2. 2

    What does \(A \cup B\) mean?

    Show answerHide answer

    The items that are in \(A\) or \(B\) or both.

  3. 3

    What does \(A'\) mean?

    Show answerHide answer

    The items that are not in \(A\).

  4. 4

    In a Venn diagram, where do you start filling in numbers?

    Show answerHide answer

    In the overlap.

  5. 5

    18 play football, 6 of them also play tennis. How many play football only?

    Show answerHide answer

    \(18 - 6 = 12\).

Exam technique: Venn diagrams

Be careful about totals that include the overlap.

  • Use the middle first

    Subtract the overlap from each circle before writing in the single regions.

  • Check the total

    Add every region, including the outside.

  • Read the question

    "Football" means everyone in the football circle, but "football only" excludes the overlap.

  • Write probabilities as fractions

    Use the total of the whole rectangle on the bottom.

Summary and exam focus

  • A Venn diagram uses overlapping circles inside a rectangle to show groups and their overlap.
  • \(\cap\) means both, \(\cup\) means either or both, and \(A'\) means not in \(A\).
  • Fill in the overlap first, then the rest of each circle, then the outside.
  • Probabilities from a Venn diagram use the region as the top and the whole rectangle as the bottom.

Exam focus

In a class of 40 students, 22 play football, 19 play tennis and 5 play neither. Work out the number who play both. (3 marks) (3 marks)

The number who play at least one sport is \(40 - 5 = 35\). Adding the circles gives \(22 + 19 = 41\), which counts the overlap twice, so the overlap is \(41 - 35 = 6\). A Venn diagram is a good way to show this.
