Physics · Forces

Distance–time graphs

Draw and interpret distance–time graphs and use gradients to find speed (and tangents for accelerating objects at Higher tier).

  • 6 key terms
  • All boards
Download the full pack · 3 files

Warm-up

Answer each one, then check.

  1. 1

    What is the gradient of a graph?

    Show answerHide answer

    Change in y divided by change in x

  2. 2

    What does a horizontal line on a distance-time graph mean?

    Show answerHide answer

    The object is stationary

  3. 3

    What is speed?

    Show answerHide answer

    Distance divided by time

  4. 4

    What is acceleration?

    Show answerHide answer

    Rate of change of velocity

  5. 5

    What does a steeper line mean?

    Show answerHide answer

    A faster speed

Learning Objectives

  1. 1Draw distance–time graphs from measurements.
  2. 2Interpret lines and slopes of distance–time graphs.
  3. 3Calculate speed from the gradient of a distance–time graph.
  4. 4Find the speed of an accelerating object at an instant using a tangent (Higher tier).

DISTANCE–TIME GRAPHS

The gradient of a distance–time graph is the speed of the object.

A straight line means constant speed, a horizontal line means stationary, and a curve means the speed is changing.

What the Graph Shows

Learn these.

  • Straight line sloping up

    Meaning: Constant speed

  • Horizontal line

    Meaning: Stationary

  • Steeper line

    Meaning: Higher speed

  • Curve getting steeper

    Meaning: Accelerating

  • Curve getting shallower

    Meaning: Decelerating

Speed from a Gradient

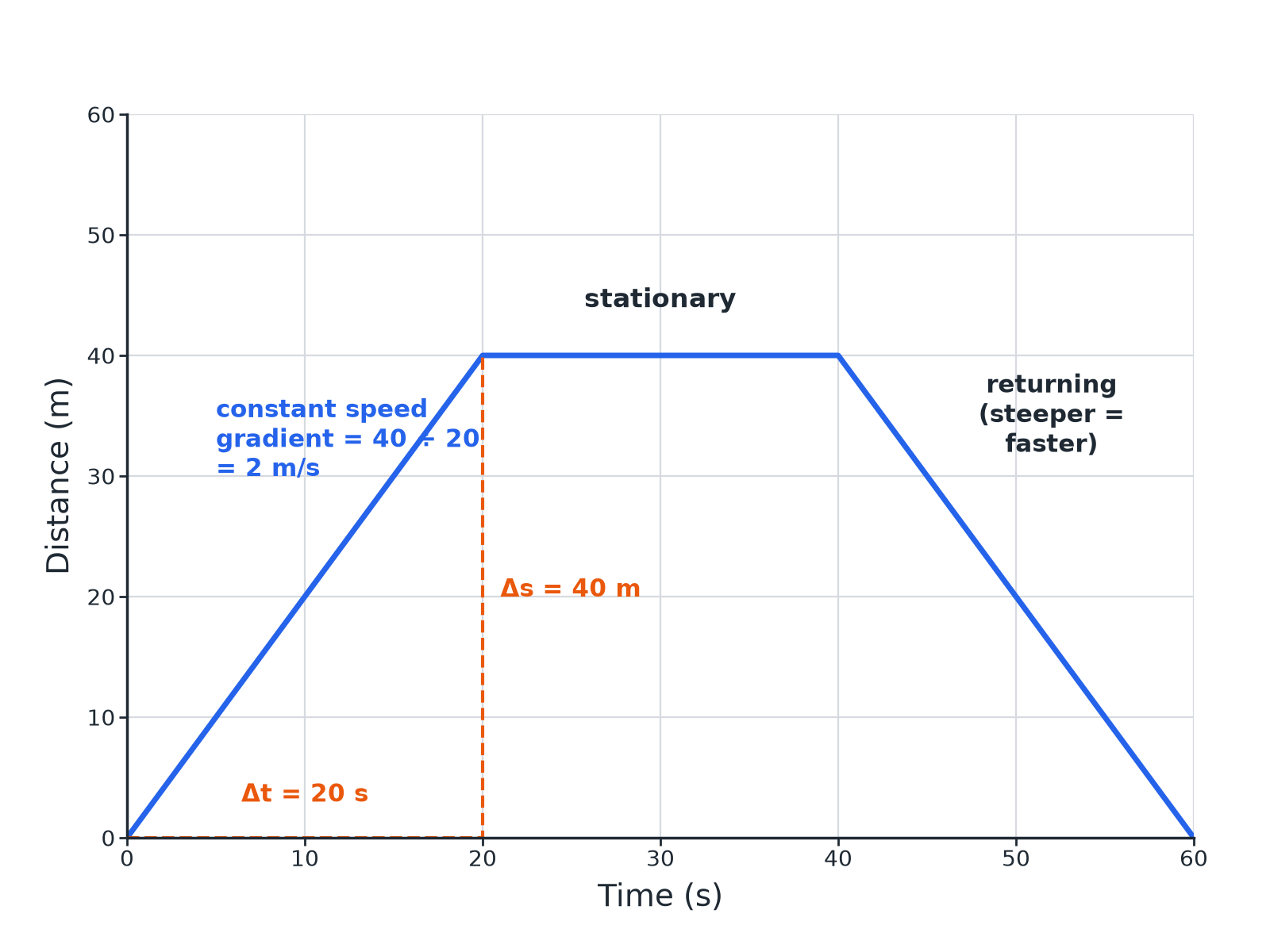

An object travels 40 m in the first 20 s. Calculate its speed from the graph.

Show the solutionHide the solution
  1. 1 Gradient \(\dfrac{\text{change in distance}}{\text{change in time}}\)
  2. 2 Substitute \(\dfrac{40}{20}\)
  3. 3 Answer \(2.0\) m/s

Answer2.0 m/s

Describing a Journey

Describe the motion shown from 20 s to 40 s where the line is horizontal.

Show the solutionHide the solution
  1. 1 Distance Does not change
  2. 2 Speed Zero

AnswerThe object is stationary.

Tangent (Higher)

The distance is given by s = 0.5t² (in metres, t in seconds). Find the speed at t = 6 s using a tangent.

Show the solutionHide the solution
  1. 1 Draw a tangent Touching the curve at t = 6 s
  2. 2 Gradient of the tangent \(\dfrac{\Delta s}{\Delta t}\) from two points on the tangent: about \(6\) m/s
  3. 3 Check The speed is t = 6 m/s from s = 0.5t²

AnswerAbout 6 m/s.

Drawing Graphs

Good practice.

  • Axes

    Time on the x-axis, distance on the y-axis, with units.

  • Points

    Plot from a table, then join with a ruler (or a smooth curve if the speed changes).

  • Gradient

    Use a large triangle for accuracy.

  • Units

    m/s if distance in m and time in s.

Story Graph

A cyclist travels 100 m in 20 s, stops for 20 s and then travels 60 m in 20 s. Sketch the graph and calculate the speed in each part.

1. Plot the three sections.

2. Gradient for each.

A good answer shows: Part 1: 5.0 m/s. Part 2: 0 m/s. Part 3: 3.0 m/s.

Can I...?

  1. 1Draw a distance–time graph.
  2. 2Say what a horizontal line means.
  3. 3Calculate speed from a gradient.
  4. 4Compare speeds from slopes.
  5. 5Describe a journey.
  6. 6Describe a curve.
  7. 7Draw a tangent.
  8. 8Use units.

Summary & Exam Focus

  • Gradient = speed.
  • Horizontal line = stationary.
  • Steeper = faster.
  • Higher: tangent to a curve gives instantaneous speed.

Exam focus

The graph shows 100 m in 20 s. Calculate the speed in the first 20 s. (2 marks) (2 marks)

Gradient = distance ÷ time.

Key terms

The vocabulary this lesson expects you to use. Each one is linked from the first place it appears above.

Distance–time graph
A graph of distance against time.
Gradient
How steep a line is.
Stationary
Not moving.
Tangent
A straight line that touches a curve at one point.
Constant speed
The same speed all the time.
Accelerating
Speeding up.

Practice questions

Have a go at each one before you open its answer.

  1. Question 1 Use the graph 4 marks

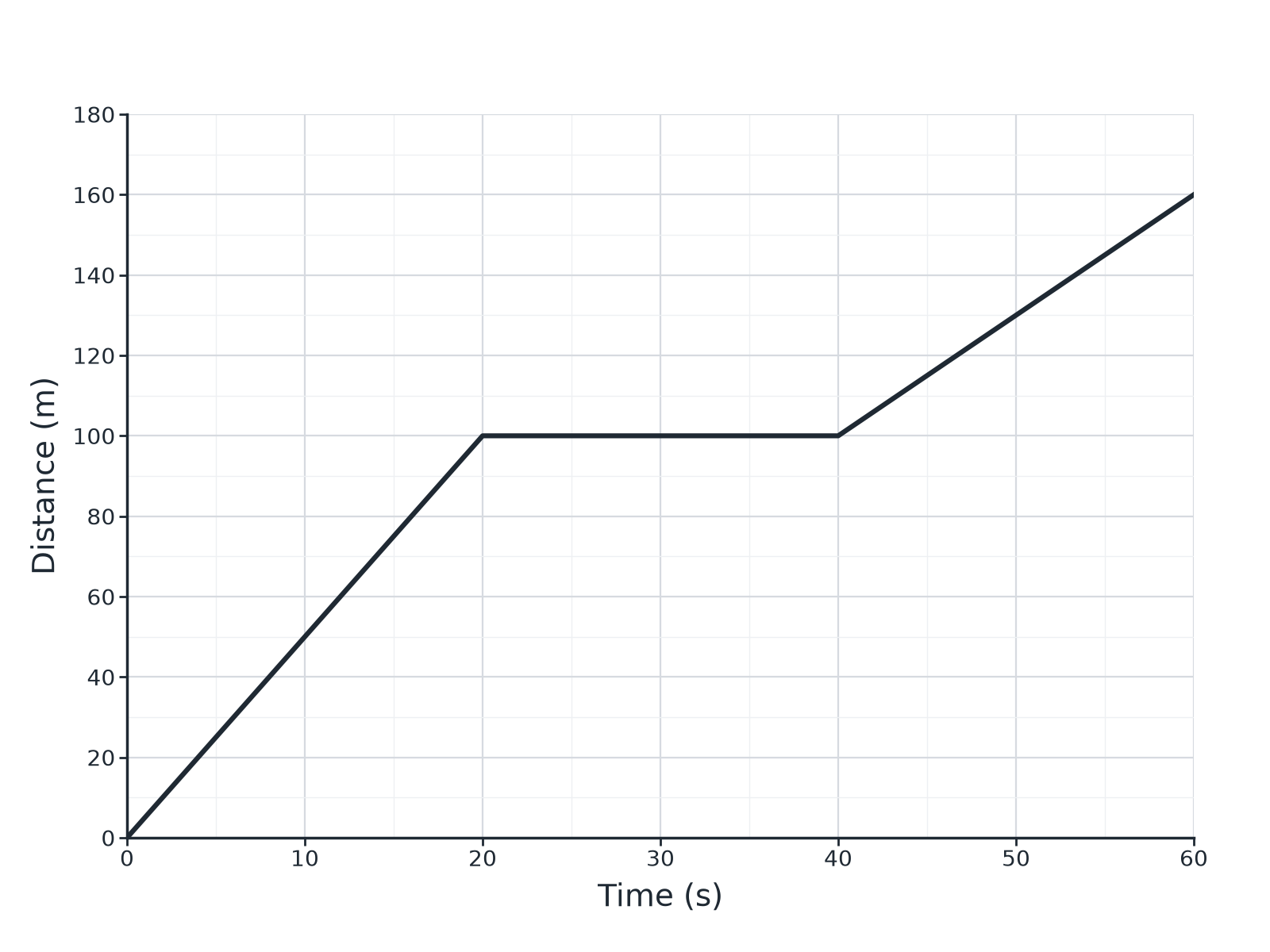

    The graph shows the distance travelled by a cyclist. (a) Calculate the speed in the first 20 s. (b) Describe the motion between 20 s and 40 s. (c) Calculate the speed between 40 s and 60 s.

    A distance-time graph with a section of constant speed, a stationary section and another section of constant speed.
    Show answerHide answer

    Model answer

    (a) 100 ÷ 20 = 5.0 m/s. (b) Stationary. (c) 60 ÷ 20 = 3.0 m/s.

    Mark scheme

    • 5.0 m/s — 1 mark
    • Stationary — 1 mark
    • Correct distance and time — 1 mark
    • 3.0 m/s — 1 mark
  2. Question 2 State 2 marks

    Describe what the gradient of a distance–time graph represents and what a horizontal line shows.

    Show answerHide answer

    Model answer

    The gradient is the speed. A horizontal line shows the object is stationary.

    Mark scheme

    • Gradient is speed — 1 mark
    • Horizontal line: stationary — 1 mark
  3. Question 3 Calculate 3 marks

    A car travels 120 m in 10 s at constant speed. Sketch a distance–time graph for this and calculate the gradient.

    Show answerHide answer

    Model answer

    A straight line from the origin to (10 s, 120 m). Gradient = 120 ÷ 10 = 12 m/s.

    Mark scheme

    • Straight line from the origin — 1 mark
    • Correct end point — 1 mark
    • 12 m/s — 1 mark
  4. Question 4 Explain 2 marks

    The distance–time graph for a runner is a curve that gets steeper. Describe the motion.

    Show answerHide answer

    Model answer

    The runner is accelerating (the speed is increasing).

    Mark scheme

    • Accelerating — 1 mark
    • Gradient or speed increases — 1 mark
  5. Question 5 Determine 3 marks

    The graph shows the distance of a car from a starting point against time as a curve. Describe how to find the speed at a particular time.

    Show answerHide answer

    Model answer

    Draw a tangent to the curve at that time and calculate its gradient (change in distance ÷ change in time).

    Mark scheme

    • Draw a tangent — 1 mark
    • Choose two points on the tangent — 1 mark
    • Gradient = change in distance ÷ change in time — 1 mark

Quick check

  1. The gradient of a distance–time graph is...

    1. Adistance
    2. Btime
    3. Cacceleration
    4. Dspeed
    Show answerHide answer

    D: speed

    Change in distance ÷ time.

  2. A horizontal line means...

    1. Astationary
    2. Bconstant speed
    3. Caccelerating
    4. Ddecelerating
    Show answerHide answer

    A: stationary

    Distance does not change.

  3. A steeper line means a...

    1. Aslower speed
    2. Bfaster speed
    3. Cstationary object
    4. Dzero distance
    Show answerHide answer

    B: faster speed

    Greater gradient.

  4. 80 m in 10 s gives a speed of...

    1. A800 m/s
    2. B0.125 m/s
    3. C8 m/s
    4. D90 m/s
    Show answerHide answer

    C: 8 m/s

    80 ÷ 10.

  5. A curve getting steeper shows...

    1. Aconstant speed
    2. Bbeing stationary
    3. Cdeceleration
    4. Dacceleration
    Show answerHide answer

    D: acceleration

    Speed is increasing.
