Graph of the sine function

More trigonometry

Lesson 2 of 9

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Warm-up

More trigonometry

Lesson 2 of 9

Answer each one, then check.

1

What is sin 30°?

2

What is sin 90°?

3

What is the largest value sin x can take?

4

What does SOH mean?

5

Which mode must a calculator be in for degrees?

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Warm-up - Answers

More trigonometry

Lesson 2 of 9

1

What is sin 30°?

0.5

2

What is sin 90°?

1

3

What is the largest value sin x can take?

1

4

What does SOH mean?

sin = opposite ÷ hypotenuse

5

Which mode must a calculator be in for degrees?

DEG

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Learning Objectives

More trigonometry

Lesson 2 of 9

1

Sketch the graph of y = sin x for 0° ≤ x ≤ 360°.

2

Recall key values of sine.

3

Use symmetry to find a second solution of sin x = k.

4

Read solutions from the graph.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

More trigonometry

Lesson 2 of 9

SINE GRAPH

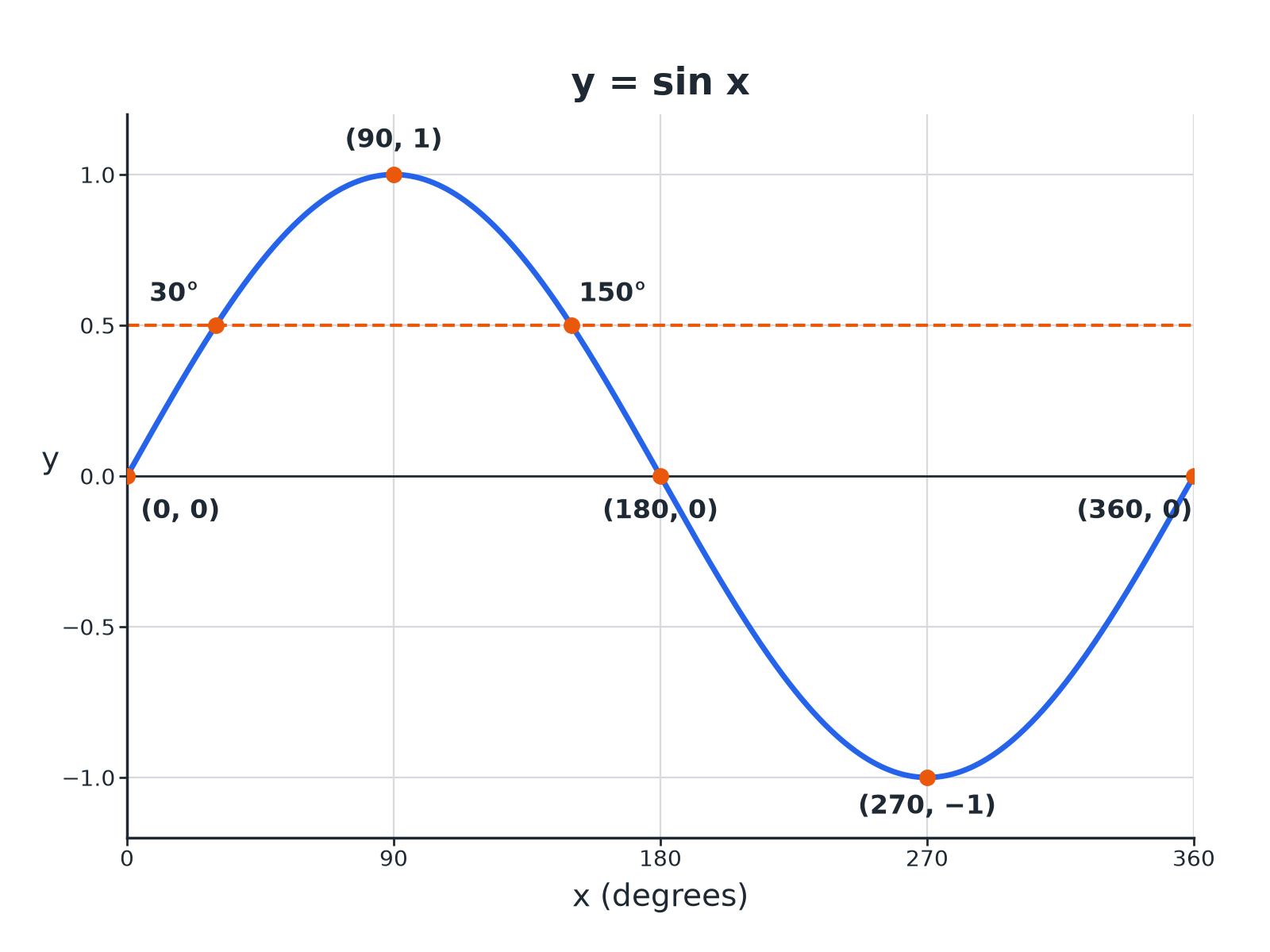

The graph of y = sin x is a smooth wave that repeats every 360°.

It starts at 0, rises to 1 at 90°, returns to 0 at 180°, falls to −1 at 270° and returns to 0 at 360°.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

The Sine Graph

More trigonometry

Lesson 2 of 9

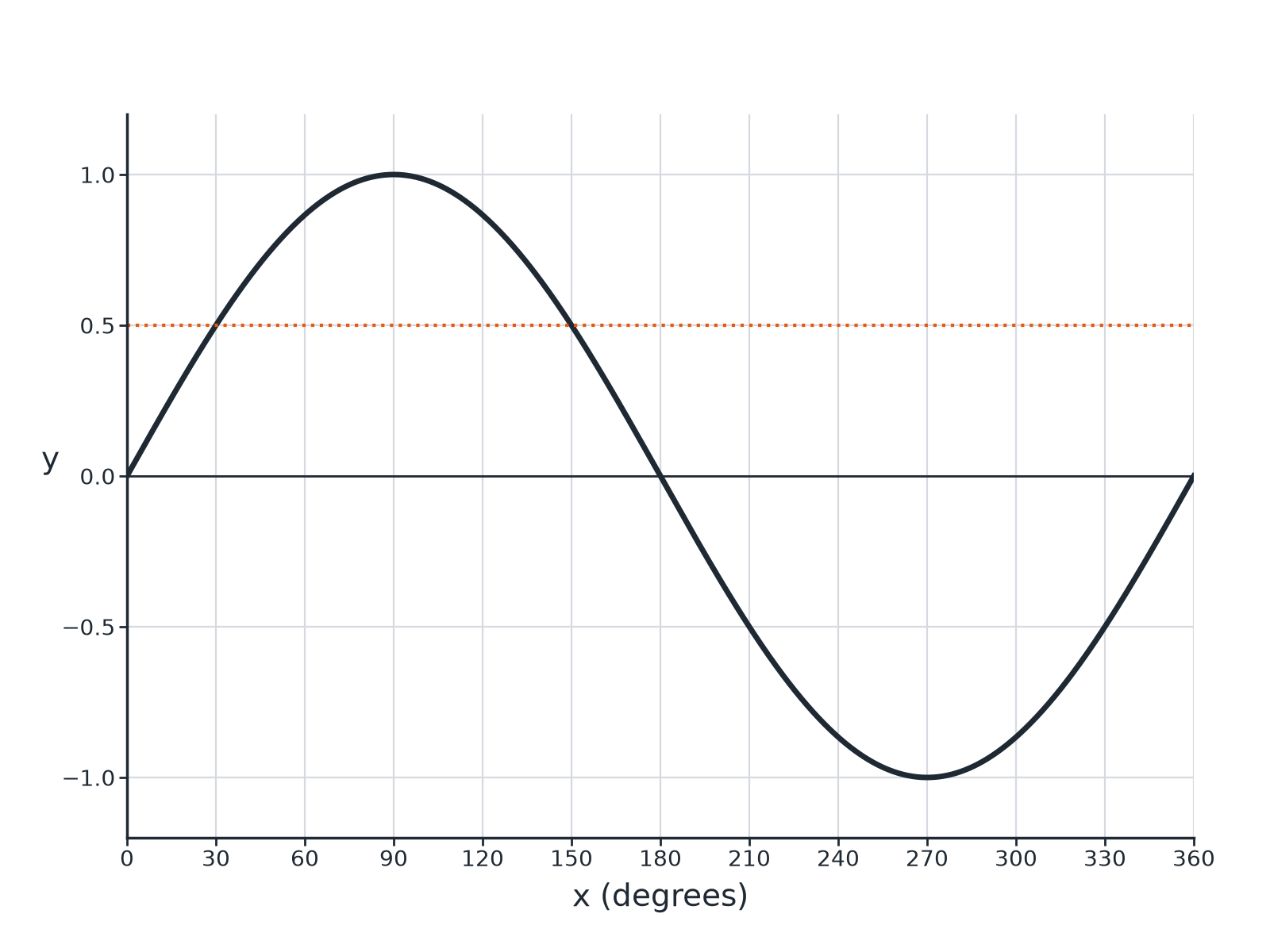

Sine x equals 0.5 has two solutions: 30 degrees and 150 degrees.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Key Values of Sine

More trigonometry

Lesson 2 of 9

These are worth learning.

x

0°

30°

90°

150°

sin x

0

0.5

1

0.5 | 0 | −1 | 0

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Features of the Graph

More trigonometry

Lesson 2 of 9

Period

Repeats every 360°.

Maximum

1 at x = 90°.

Minimum

−1 at x = 270°.

Roots

x = 0°, 180°, 360°.

Symmetry

Symmetrical about x = 90° and x = 270°.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Finding Two Solutions

More trigonometry

Lesson 2 of 9

Use symmetry about x = 90°.

1

Use the calculator

Find x = sin ⁻¹(k); this is the first solution

2

Reflect about 90

Second solution = 180°− x

3

Check the range

Both must be between 0° and 360°

4

Negative values

If k < 0, the solutions are between 180° and 360°

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Solving sin x = 0.5

More trigonometry

Lesson 2 of 9

Solve sin x = 0.5 for 0° ≤ x ≤ 360°.

1

Calculator

x = sin ⁻¹(0.5) = 30°

2

Reflect

x = 180°− 30°= 150°

ANSWER

x = 30° and x = 150°

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Solving a Negative Value

More trigonometry

Lesson 2 of 9

Solve sin x = −0.5 for 0° ≤ x ≤ 360°.

1

Calculator gives

sin ⁻¹(−0.5) = −30°, so use the positive 30° as a reference

2

Below the axis

Solutions are 180°+ 30° and 360°− 30°

3

Values

210° and 330°

ANSWER

x = 210° and x = 330°

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Key Terms

More trigonometry

Lesson 2 of 9

Period

The length after which the graph repeats.

Amplitude

The height from the middle line to the maximum.

Maximum

The highest value on the graph.

Minimum

The lowest value on the graph.

Inverse sine

sin ⁻¹, the calculator function that finds an angle.

Symmetry

The graph looks the same on both sides of a line.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

More trigonometry

Lesson 2 of 9

YOUR TASK

Sketch and Solve

12 minutes

(a) Sketch y = sin x for 0° to 360°. (b) Mark y = 0.8 and read the two solutions from your sketch. (c) Calculate them: sin ⁻¹(0.8) = 53.1°.

1

Draw the axes with 90° marks.

2

Use symmetry about 90°.

WHAT A GOOD ANSWER SHOWS

(b) About 53° and 127°. (c) x = 53.1° and 180°− 53.1°= 126.9°.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Can I...?

More trigonometry

Lesson 2 of 9

Sketch the sine graph.

State its maximum and minimum.

State its period.

Recall sin 30 and sin 90.

Use sin inverse.

Find the second solution.

Solve for negative values.

Read solutions from a graph.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Summary & Exam Focus

Sine repeats every 360°, max 1, min −1.

sin x = k has two solutions in 0° to 360° for −1 < k < 1.

Positive k: x and 180°− x.

Negative k: angles in the second half.

EXAM FOCUS

Solve sin x = 0.6 for 0° ≤ x ≤ 360°. Give answers correct to 1 decimal place. (3 marks)

Second solution is 180°− x. Check both are in range.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Exam Practice: Graph of the sine function

More trigonometry

Lesson 2 of 9

Answer all questions. Show your working. · 25 minutes

Question 1 · 3 marks · Solve

Solve sin x = 0.6 for 0° ≤ x ≤ 360°. Give your answers correct to 1 decimal place.

Question 2 · 2 marks · Write down

Write down the value of (a) sin 90° (b) sin 270°

Question 3 · 3 marks · Use the graph

The graph shows y = sin x for 0° ≤ x ≤ 360°. Use the graph to solve sin x = 0.5 and to write down the maximum value of sin x.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Exam Practice: Graph of the sine function (cont.)

More trigonometry

Lesson 2 of 9

Question 4 · 3 marks · Solve

Solve sin x = −0.3 for 0° ≤ x ≤ 360°. Give your answers correct to 1 decimal place.

Question 5 · 2 marks · Explain

Amir says that sin x = 1.4 has a solution. Explain why he is wrong.

Question 6 · 2 marks · Write down

sin 40°= 0.64 (to 2 decimal places). Write down another angle between 0° and 360° with sine 0.64.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 1 · 3 marks · Solve

More trigonometry

Lesson 2 of 9

“

Solve sin x = 0.6 for 0° ≤ x ≤ 360°. Give your answers correct to 1 decimal place.

HOW TO ANSWER IT

Command word: Solve. Worth 3 marks, so plan before writing.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 1 · mark scheme

More trigonometry

Lesson 2 of 9

3 marks available. Award a mark for each point made.

sin ⁻¹(0.6) = 36.9°

B1

180 − 36.9

M1

143.1

A1

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 2 · 2 marks · Write down

More trigonometry

Lesson 2 of 9

“

Write down the value of (a) sin 90° (b) sin 270°

HOW TO ANSWER IT

Command word: Write down. Worth 2 marks, so plan before writing.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 2 · mark scheme

More trigonometry

Lesson 2 of 9

2 marks available. Award a mark for each point made.

1

B1

−1

B1

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 3 · 3 marks · Use the graph

More trigonometry

Lesson 2 of 9

The graph shows y = sin x for 0° ≤ x ≤ 360°. Use the graph to solve sin x = 0.5 and to write down the maximum value of sin x. (3 marks)

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 3 · mark scheme

More trigonometry

Lesson 2 of 9

3 marks available. Award a mark for each point made.

30

B1

150

B1

1

B1

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 4 · 3 marks · Solve

More trigonometry

Lesson 2 of 9

“

Solve sin x = −0.3 for 0° ≤ x ≤ 360°. Give your answers correct to 1 decimal place.

HOW TO ANSWER IT

Command word: Solve. Worth 3 marks, so plan before writing.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 4 · mark scheme

More trigonometry

Lesson 2 of 9

3 marks available. Award a mark for each point made.

Reference angle 17.5°

B1

180 + 17.5 or 360 − 17.5

M1

Both answers

A1

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 5 · 2 marks · Explain

More trigonometry

Lesson 2 of 9

“

Amir says that sin x = 1.4 has a solution. Explain why he is wrong.

HOW TO ANSWER IT

Command word: Explain. Worth 2 marks, so plan before writing.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 5 · mark scheme

More trigonometry

Lesson 2 of 9

2 marks available. Award a mark for each point made.

Maximum of sine is 1

M1

Conclusion

C1

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 6 · 2 marks · Write down

More trigonometry

Lesson 2 of 9

“

sin 40°= 0.64 (to 2 decimal places). Write down another angle between 0° and 360° with sine 0.64.

HOW TO ANSWER IT

Command word: Write down. Worth 2 marks, so plan before writing.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 6 · mark scheme

More trigonometry

Lesson 2 of 9

2 marks available. Award a mark for each point made.

180 − 40

M1

140

A1
