Using iteration to solve equations - Teacher Slides.pptx

EDEXCEL GCSE MATHS · HIGHER

Using iteration to solve equations

Equations and graphs

Lesson 6 of 6

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Warm-up

Equations and graphs

Lesson 6 of 6

Answer each one, then check.

1

Work out 1³ − 1 − 1.

2

Work out 2³ − 2 − 1.

3

What is ∛8?

4

What does ANS do on a calculator?

5

What does "to 2 decimal places" mean?

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Warm-up - Answers

Equations and graphs

Lesson 6 of 6

1

Work out 1³ − 1 − 1.

−1

2

Work out 2³ − 2 − 1.

5

3

What is ∛8?

2

4

What does ANS do on a calculator?

Uses the previous answer

5

What does "to 2 decimal places" mean?

Rounded to two digits after the point

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Learning Objectives

Equations and graphs

Lesson 6 of 6

1

Show that a root lies between two values.

2

Use decimal search to narrow down a root.

3

Use an iteration formula x_(n+1) = f(x_n).

4

Rearrange an equation into an iteration formula.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Equations and graphs

Lesson 6 of 6

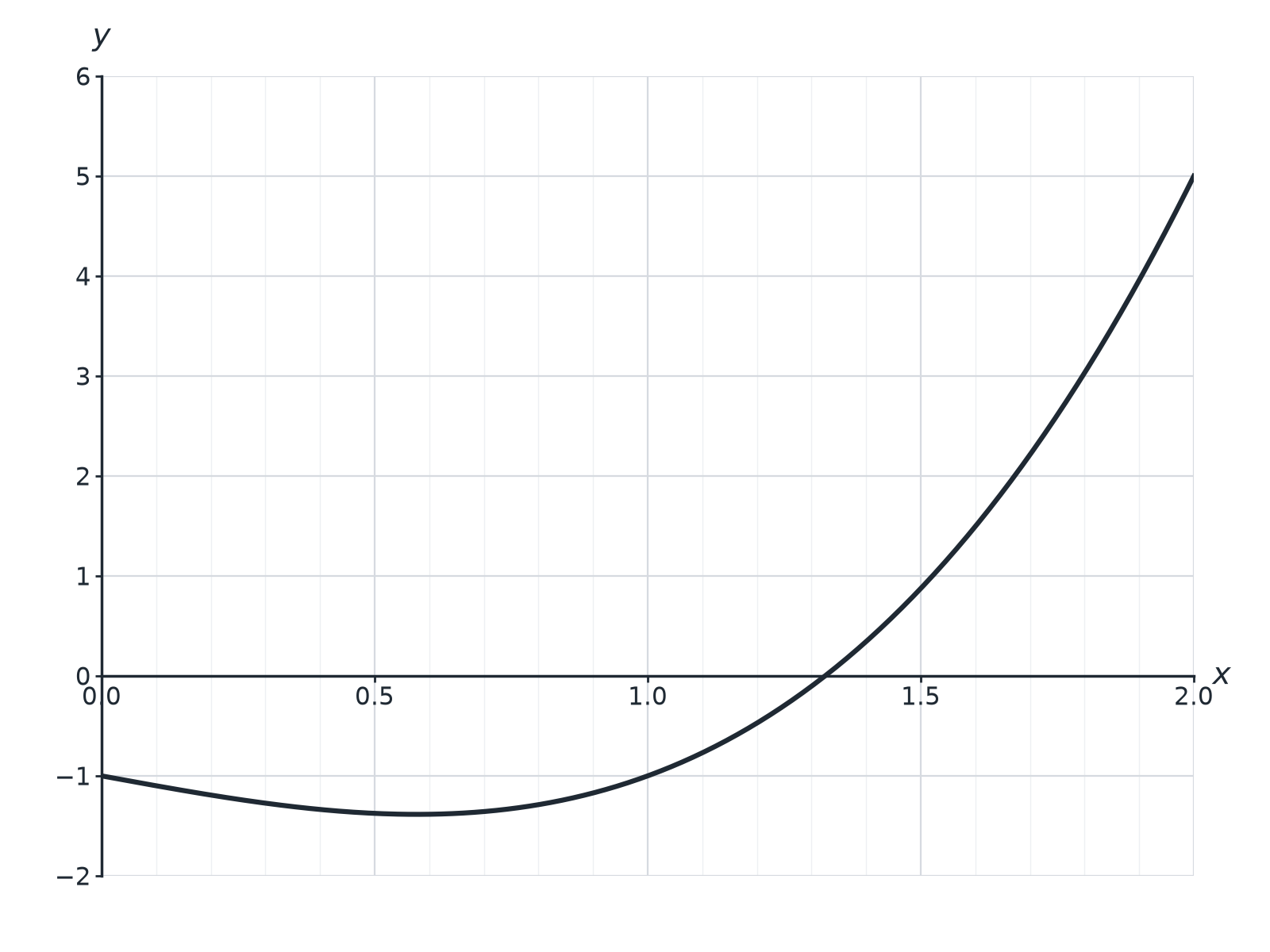

CHANGE OF SIGN

If f(a) and f(b) have opposite signs, the graph crosses the x-axis between a and b, so there is a root in that interval.

This works when f is continuous, with no breaks in the curve.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

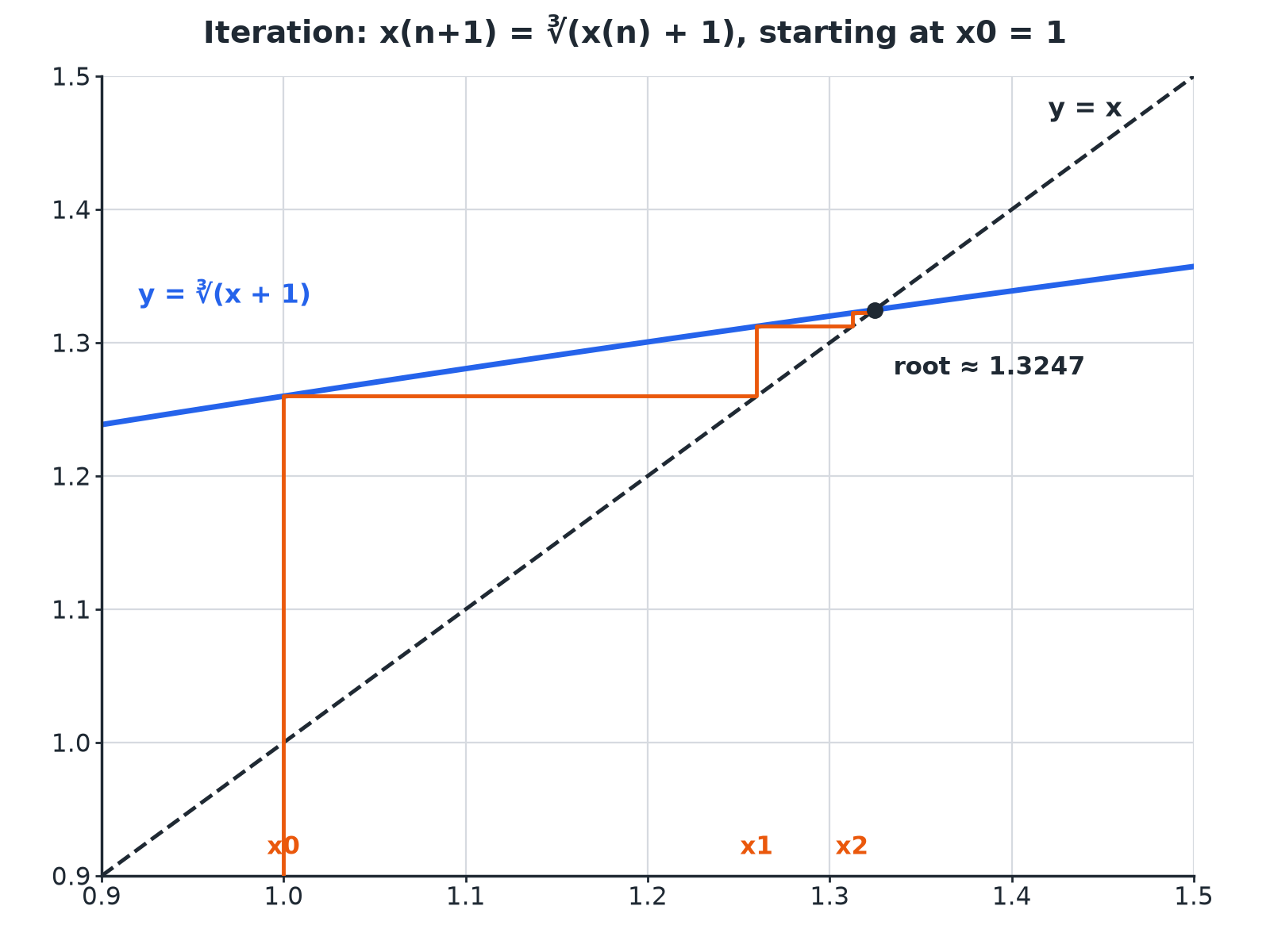

Iteration Staircase

Equations and graphs

Lesson 6 of 6

Each step feeds the last answer back in, moving towards the root.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Change of Sign

Equations and graphs

Lesson 6 of 6

Show that x³ − x − 1 = 0 has a root between 1 and 2.

1

Write the function

f(x) = x³ − x − 1

2

f(1)

1 − 1 − 1 = −1

3

f(2)

8 − 2 − 1 = 5

4

Sign change

Negative to positive

ANSWER

f(1) < 0 and f(2) > 0, so there is a root between 1 and 2.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Decimal Search

Equations and graphs

Lesson 6 of 6

Find the root of x³ − x − 1 = 0 to 2 decimal places.

1

f(1.3)

−0.103 (negative)

2

f(1.4)

0.344 (positive)

3

f(1.32)

−0.020 (negative)

4

f(1.33)

0.023 (positive)

5

Midpoint f(1.325)

0.001 (positive), so the root is below 1.325

ANSWER

The root is 1.32 to 2 decimal places.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Iteration

Equations and graphs

Lesson 6 of 6

x_(n+1) = ∛(x_n + 1) with x₀ = 1. Work out x₁, x₂ and x₃.

1

x₁

∛2 = 1.2599

2

x₂

∛(1.2599 + 1) = 1.3123

3

x₃

∛(1.3123 + 1) = 1.3224

ANSWER

x₁ = 1.2599, x₂ = 1.3123, x₃ = 1.3224; the values are approaching the root 1.3247.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Rearranging to an Iteration Formula

Equations and graphs

Lesson 6 of 6

Show that x³ − x − 1 = 0 can be rearranged to x = ∛(x + 1).

1

Add x + 1

x³ = x + 1

2

Cube root

x = ∛(x + 1)

ANSWER

x³ − x − 1 = 0 gives x³ = x + 1, so x = ∛(x + 1).

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Calculator Tips

Equations and graphs

Lesson 6 of 6

Use your calculator efficiently.

Type the starting value

Press =, then type the formula using ANS.

Keep pressing =

Each press gives the next term.

Do not round in between

Use the full value from ANS.

Compare

When two terms agree to the accuracy needed, stop.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Key Terms

Equations and graphs

Lesson 6 of 6

Iteration

Repeating a calculation using the previous answer.

Iteration formula

A rule x_(n+1) = f(x_n).

Starting value

The first value, x₀.

Change of sign

f(a) and f(b) have opposite signs.

Root

A value of x where f(x) = 0.

Convergence

The values getting closer to a limit.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Equations and graphs

Lesson 6 of 6

YOUR TASK

Close In on a Root

12 minutes

(a) Show that x³ + 2x − 7 = 0 has a root between 1 and 2. (b) Use decimal search to find the root to 1 decimal place.

1

Test the midpoint of the last interval.

2

Decide which way to round.

WHAT A GOOD ANSWER SHOWS

(a) f(1) = −4, f(2) = 5. (b) f(1.5) = −0.625, f(1.6) = 0.296, f(1.55) = −0.176; the root is between 1.55 and 1.6, so it is 1.6 to 1 d.p.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Can I...?

Equations and graphs

Lesson 6 of 6

Evaluate f(a) and f(b).

Explain a change of sign.

Use decimal search.

Use a starting value.

Use ANS on a calculator.

Use an iteration formula.

Rearrange to an iteration formula.

Stop at the required accuracy.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Summary & Exam Focus

Change of sign shows a root in an interval.

Decimal search narrows the interval.

Iteration: feed each answer back into the formula.

Stop when values agree to the required accuracy.

EXAM FOCUS

Show that x³ − x − 1 = 0 has a root between 1 and 2. (2 marks)

Show both values of f and state that the sign changes.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Exam Practice: Using iteration to solve equations

Equations and graphs

Lesson 6 of 6

Answer all questions. Show your working. · 30 minutes

Question 1 · 2 marks · Show that

Show that the equation x³ − x − 1 = 0 has a root between 1 and 2.

Question 2 · 3 marks · Work out

x_(n+1) = ∛(x_n + 1) and x₀ = 1. Work out the values of x₁, x₂ and x₃.

Question 3 · 2 marks · Show that

Show that x³ − x − 1 = 0 can be rearranged to give x = ∛(x + 1).

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Exam Practice: Using iteration to solve equations (cont.)

Equations and graphs

Lesson 6 of 6

Question 4 · 4 marks · Find

The graph of y = x³ − x − 1 is shown. It crosses the x-axis between x = 1 and x = 2. Use a trial and improvement method to find this root…

Question 5 · 4 marks · Find

(a) Show that x³ + 2x − 7 = 0 has a root between 1 and 2. (b) Find this root correct to 1 decimal place.

Question 6 · 2 marks · Explain

Using x_(n+1) = ∛(x_n + 1) with x₀ = 1, the values are x₅ = 1.32463 and x₆ = 1.32470. Write down the root of x³ − x − 1 = 0 to 3 decimal…

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 1 · 2 marks · Show that

Equations and graphs

Lesson 6 of 6

“

Show that the equation x³ − x − 1 = 0 has a root between 1 and 2.

HOW TO ANSWER IT

Command word: Show that. Worth 2 marks, so plan before writing.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 1 · mark scheme

Equations and graphs

Lesson 6 of 6

2 marks available. Award a mark for each point made.

f(1) = −1 and f(2) = 5

M1

Change of sign conclusion

C1

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 2 · 3 marks · Work out

Equations and graphs

Lesson 6 of 6

“

x_(n+1) = ∛(x_n + 1) and x₀ = 1. Work out the values of x₁, x₂ and x₃.

HOW TO ANSWER IT

Command word: Work out. Worth 3 marks, so plan before writing.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 2 · mark scheme

Equations and graphs

Lesson 6 of 6

3 marks available. Award a mark for each point made.

x₁ = 1.26

B1

x₂ = 1.31

B1

x₃ = 1.32

B1

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 3 · 2 marks · Show that

Equations and graphs

Lesson 6 of 6

“

Show that x³ − x − 1 = 0 can be rearranged to give x = ∛(x + 1).

HOW TO ANSWER IT

Command word: Show that. Worth 2 marks, so plan before writing.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 3 · mark scheme

Equations and graphs

Lesson 6 of 6

2 marks available. Award a mark for each point made.

x³ = x + 1

M1

Cube root both sides

A1

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 4 · 4 marks · Find

Equations and graphs

Lesson 6 of 6

The graph of y = x³ − x − 1 is shown. It crosses the x-axis between x = 1 and x = 2. Use a trial and improvement method to find this root correct to 1 decimal place. You must show all your working. (4 marks)

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 4 · mark scheme

Equations and graphs

Lesson 6 of 6

4 marks available. Award a mark for each point made.

Tests values in the interval

M1

f(1.3) < 0 and f(1.4) > 0

A1

Tests 1.35

M1

1.3

A1

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 5 · 4 marks · Find

Equations and graphs

Lesson 6 of 6

“

(a) Show that x³ + 2x − 7 = 0 has a root between 1 and 2. (b) Find this root correct to 1 decimal place.

HOW TO ANSWER IT

Command word: Find. Worth 4 marks, so plan before writing.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 5 · mark scheme

Equations and graphs

Lesson 6 of 6

4 marks available. Award a mark for each point made.

f(1) = −4 and f(2) = 5

B1

Tests 1.5 or 1.6

M1

Tests 1.55

M1

1.6

A1

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 6 · 2 marks · Explain

Equations and graphs

Lesson 6 of 6

“

Using x_(n+1) = ∛(x_n + 1) with x₀ = 1, the values are x₅ = 1.32463 and x₆ = 1.32470. Write down the root of x³ − x − 1 = 0 to 3 decimal places and explain how you know.

HOW TO ANSWER IT

Command word: Explain. Worth 2 marks, so plan before writing.

openrevise.com

EDEXCEL GCSE MATHS · HIGHER

Question 6 · mark scheme

Equations and graphs

Lesson 6 of 6

2 marks available. Award a mark for each point made.

1.325

B1

Successive values agree to 3 d.p.

C1
