Efficiency - Teacher Slides.pptx

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Efficiency

Energy

Lesson 6 of 7

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Warm-up

Energy

Lesson 6 of 7

Answer each one, then check.

1

What is dissipated energy?

2

What is 0.35 as a percentage?

3

Write 60% as a decimal.

4

Give the unit of power.

5

What does 'useful' energy mean?

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Warm-up - Answers

Energy

Lesson 6 of 7

1

What is dissipated energy?

Energy spread to the surroundings in less useful stores

2

What is 0.35 as a percentage?

35%

3

Write 60% as a decimal.

0.60

4

Give the unit of power.

Watt

5

What does 'useful' energy mean?

Energy transferred in the way we want

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Learning Objectives

Energy

Lesson 6 of 7

1

Recall and apply the efficiency equations.

2

Give efficiency as a decimal or a percentage.

3

Interpret Sankey diagrams.

4

Describe ways to increase the efficiency of an energy transfer (Higher tier).

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Energy

Lesson 6 of 7

EFFICIENCY

efficiency = (useful output energy transfer)/(total input energy transfer)

Also: efficiency = (useful power output)/(total power input). Efficiency has no units and is never more than 1 (100%).

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

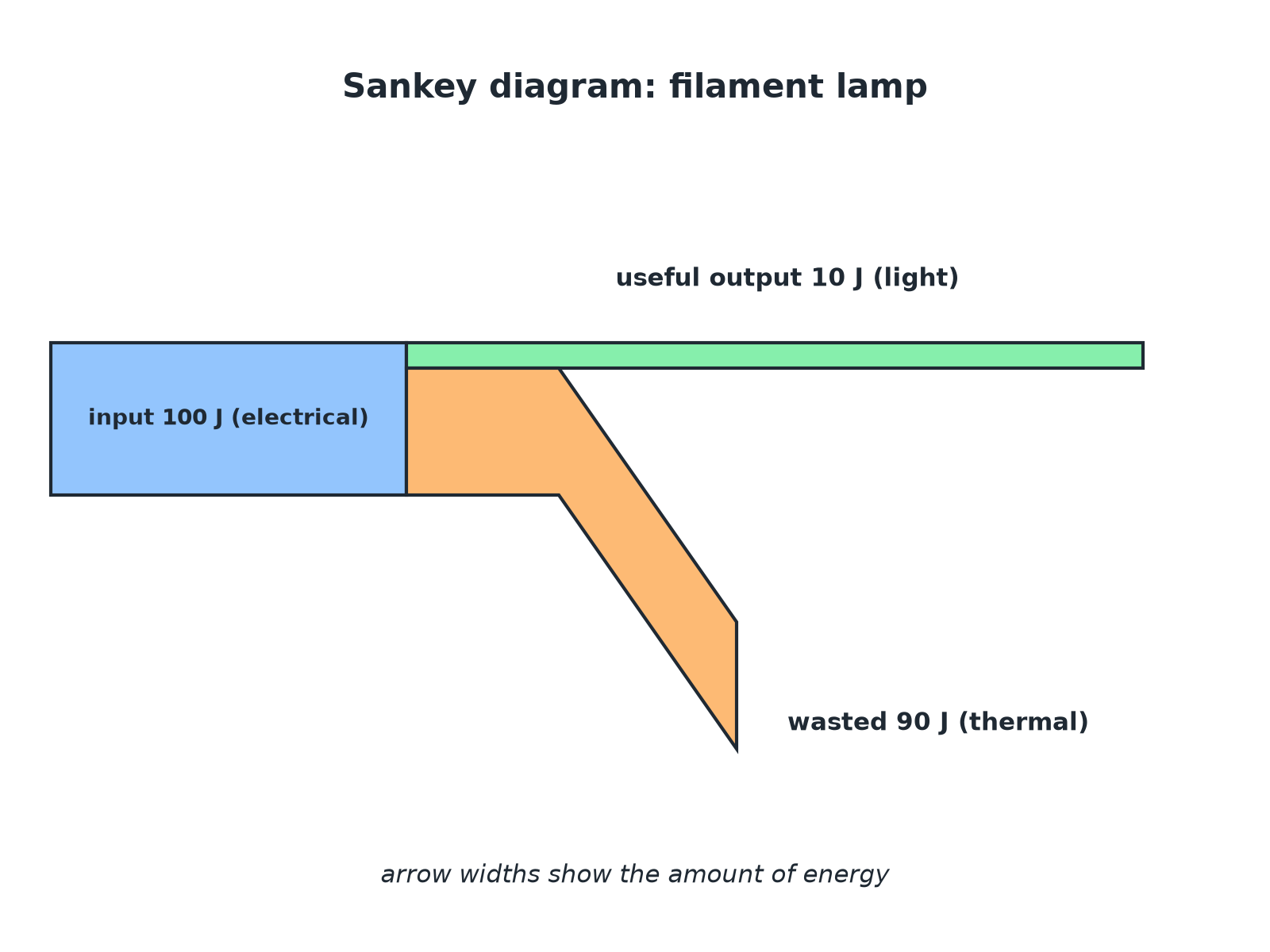

A Sankey Diagram

Energy

Lesson 6 of 7

The width of each arrow shows the amount of energy.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Efficiency of a Lamp

Energy

Lesson 6 of 7

A lamp transfers 100 J of electrical energy and 8 J of it is transferred as light. Calculate its efficiency.

1

Write the equation

efficiency = (useful output)/(total input)

2

Substitute

8/100

3

Decimal

0.08

4

Percentage

0.08 × 100 = 8%

ANSWER

Efficiency = 0.08 or 8%.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Using Power

Energy

Lesson 6 of 7

A motor has a total power input of 500 W and a useful power output of 350 W. Calculate its efficiency as a percentage.

1

Substitute

350/500

2

Decimal

0.70

3

Percentage

70%

ANSWER

70%

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Finding the Useful Output

Energy

Lesson 6 of 7

A machine is 85% efficient. How much useful energy does it transfer from a 400 J input?

1

Efficiency as a decimal

0.85

2

Multiply

0.85 × 400 = 340 J

ANSWER

340 J

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Ways to Increase Efficiency (Higher Tier)

Energy

Lesson 6 of 7

Reduce the energy that is dissipated.

Lubrication

Reduces friction between moving parts.

Thermal insulation

Reduces energy lost by heating, for example around a boiler or a house.

Streamlining

Reduces air resistance so less energy is wasted.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Ways to Increase Efficiency (Higher Tier) (cont.)

Energy

Lesson 6 of 7

Better design

For example LED lamps transfer more input energy as light.

Higher tier

The question may ask you to suggest a way suitable for a described machine.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Common Mistakes

Energy

Lesson 6 of 7

Check your answer.

Efficiency above 1

It cannot be greater than 1 (100%): useful output cannot be more than the input.

Wrong way up

Useful output goes on top.

Units

Do not write J or W after an efficiency.

Percent or decimal

Read the question for the form required.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Key Terms

Energy

Lesson 6 of 7

Efficiency

The fraction of the input energy that is transferred usefully.

Useful output

Energy transferred in the way that is wanted.

Wasted energy

Energy transferred to stores that are not useful.

Sankey diagram

A diagram with arrow widths that show energy amounts.

Streamlining

Shaping an object to reduce air resistance.

Input

The energy or power supplied to a device.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Energy

Lesson 6 of 7

YOUR TASK

Compare the Lamps

12 minutes

LED lamp: efficiency 0.85, input power 8 W. Filament lamp: efficiency 0.10, input power 60 W. Calculate the useful power output of each and say which lamp is better.

1

Rearrange the equation for useful power.

2

Compare the two answers.

WHAT A GOOD ANSWER SHOWS

LED: 0.85 × 8 = 6.8 W. Filament: 0.10 × 60 = 6.0 W. The LED gives more useful output from far less input, so it is better.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Can I...?

Energy

Lesson 6 of 7

Recall both efficiency equations.

Calculate efficiency.

Convert decimal and percentage.

Interpret a Sankey diagram.

Explain efficiency cannot exceed 1.

Find useful output from an efficiency.

Describe ways to increase efficiency.

Compare devices.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Summary & Exam Focus

Efficiency = useful output ÷ total input.

Also useful power ÷ total power.

Multiply by 100 for a percentage.

Efficiency is never more than 1.

EXAM FOCUS

A device has an input of 400 J and a useful output of 100 J. Calculate the efficiency. (2 marks)

Put useful over total.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Exam Practice: Efficiency

Energy

Lesson 6 of 7

Answer all questions. Use the mark allocation as a guide to how much to write. · 17 minutes

Question 1 · 2 marks · Calculate

A device transfers 400 J of energy as input and 100 J of useful energy. Calculate the efficiency of the device. Use the equation…

Question 2 · 3 marks · Use the diagram

The Sankey diagram shows the energy transfers in an electric motor. (a) Calculate the energy wasted every second. (b) Calculate the…

Question 3 · 3 marks · Calculate

A lamp has an efficiency of 0.20 and a total power input of 60 W. Calculate the useful power output of the lamp.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Exam Practice: Efficiency (cont.)

Energy

Lesson 6 of 7

Question 4 · 2 marks · Suggest

A car engine wastes a lot of energy. Suggest two ways to increase the efficiency of the car.

Question 5 · 4 marks · Compare

An LED lamp has an efficiency of 0.85 and an input power of 8 W. A filament lamp has an efficiency of 0.10 and an input power of 60 W…

Question 6 · 2 marks · Explain

A student says that a machine has an efficiency of 120%. Explain why this cannot be correct.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 1 · 2 marks · Calculate

Energy

Lesson 6 of 7

“

A device transfers 400 J of energy as input and 100 J of useful energy. Calculate the efficiency of the device. Use the equation: efficiency = useful output energy transfer ÷ total input energy transfer

HOW TO ANSWER IT

Command word: Calculate. Worth 2 marks, so plan before writing.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 1 · mark scheme

Energy

Lesson 6 of 7

2 marks available. Award a mark for each point made.

Correct substitution

1 mark

0.25 or 25%

1 mark

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 2 · 3 marks · Use the diagram

Energy

Lesson 6 of 7

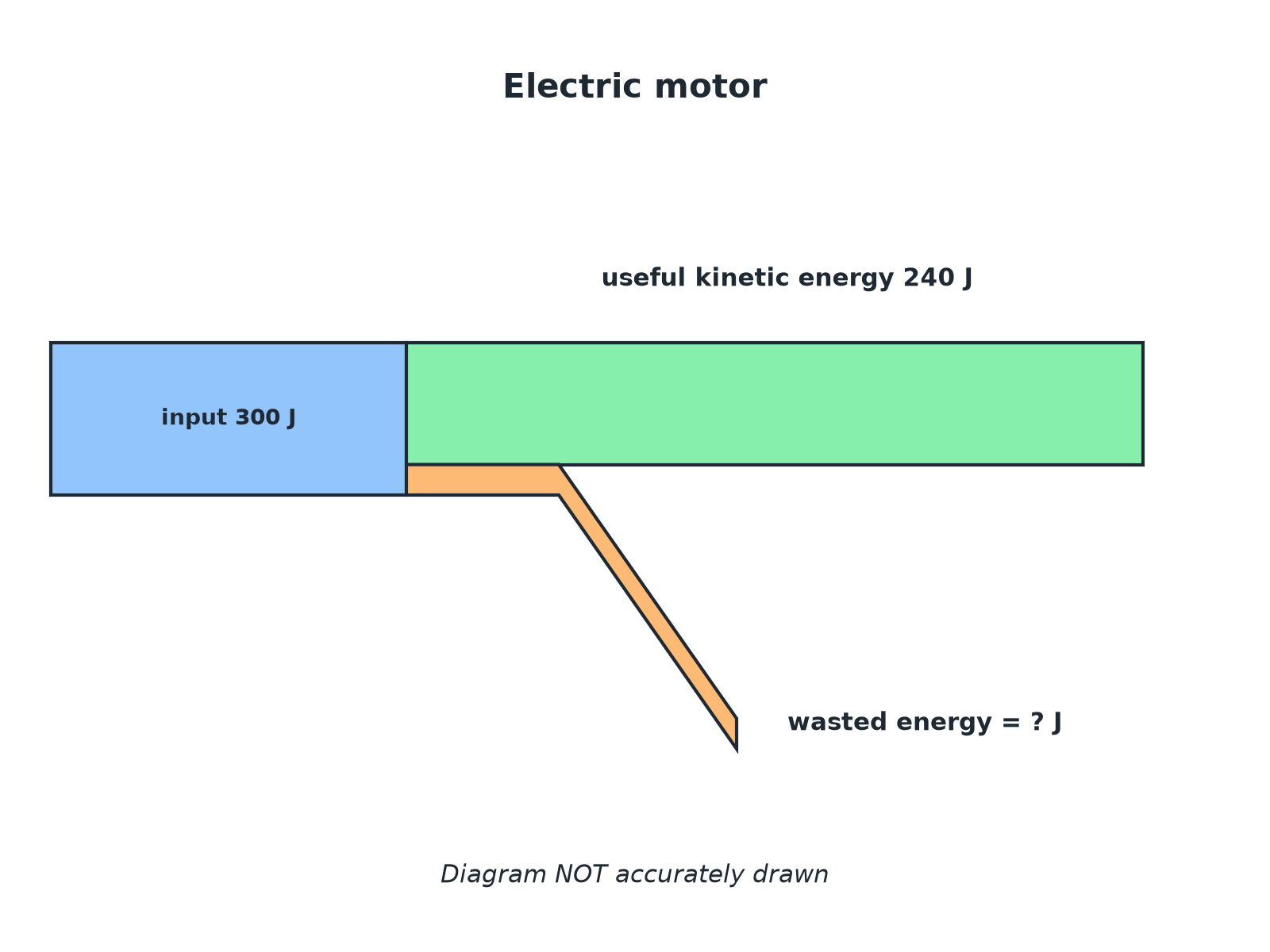

The Sankey diagram shows the energy transfers in an electric motor. (a) Calculate the energy wasted every second. (b) Calculate the efficiency of the motor. (3 marks)

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 2 · mark scheme

Energy

Lesson 6 of 7

3 marks available. Award a mark for each point made.

60 J

1 mark

Correct substitution

1 mark

0.80 or 80%

1 mark

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 3 · 3 marks · Calculate

Energy

Lesson 6 of 7

“

A lamp has an efficiency of 0.20 and a total power input of 60 W. Calculate the useful power output of the lamp.

HOW TO ANSWER IT

Command word: Calculate. Worth 3 marks, so plan before writing.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 3 · mark scheme

Energy

Lesson 6 of 7

3 marks available. Award a mark for each point made.

Rearranges to power output = efficiency × input

1 mark

Correct substitution

1 mark

12 W

1 mark

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 4 · 2 marks · Suggest

Energy

Lesson 6 of 7

“

A car engine wastes a lot of energy. Suggest two ways to increase the efficiency of the car.

HOW TO ANSWER IT

Command word: Suggest. Worth 2 marks, so plan before writing.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 4 · mark scheme

Energy

Lesson 6 of 7

2 marks available. Award a mark for each point made.

First way

1 mark

Second way

1 mark

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 5 · 4 marks · Compare

Energy

Lesson 6 of 7

“

An LED lamp has an efficiency of 0.85 and an input power of 8 W. A filament lamp has an efficiency of 0.10 and an input power of 60 W. Compare the useful power output of the two lamps. Which is the better lamp? Show your calculations.

HOW TO ANSWER IT

Command word: Compare. Worth 4 marks, so plan before writing.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 5 · mark scheme

Energy

Lesson 6 of 7

4 marks available. Award a mark for each point made.

6.8 W

1 mark

6.0 W

1 mark

LED gives more useful power

1 mark

With much less input power

1 mark

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 6 · 2 marks · Explain

Energy

Lesson 6 of 7

“

A student says that a machine has an efficiency of 120%. Explain why this cannot be correct.

HOW TO ANSWER IT

Command word: Explain. Worth 2 marks, so plan before writing.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 6 · mark scheme

Energy

Lesson 6 of 7

2 marks available. Award a mark for each point made.

Energy cannot be created

1 mark

Useful output cannot exceed the total input

1 mark
