Electrical power

Electricity

Lesson 6 of 10

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Warm-up

Electricity

Lesson 6 of 10

Answer each one, then check.

1

What is the unit of power?

2

Write the equation linking energy and time for power.

3

What is V = IR used for?

4

Convert 2.3 kW to watts.

5

Work out 3².

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Warm-up - Answers

Electricity

Lesson 6 of 10

1

What is the unit of power?

Watt (W)

2

Write the equation linking energy and time for power.

P = E ÷ t

3

What is V = IR used for?

Linking pd, current and resistance

4

Convert 2.3 kW to watts.

2300 W

5

Work out 3².

9

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Learning Objectives

Electricity

Lesson 6 of 10

1

Explain how the power transfer in a device is related to the pd across it and the current through it.

2

Recall and apply P = VI.

3

Recall and apply P = I²R.

4

Rearrange to find current, pd or resistance.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Electricity

Lesson 6 of 10

ELECTRICAL POWER

power = potential difference × current P = VI

Also P = I²R (power = current squared × resistance). Power is in watts (W), pd in volts (V), current in amperes (A) and resistance in ohms (Ω).

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Power in a Circuit

Electricity

Lesson 6 of 10

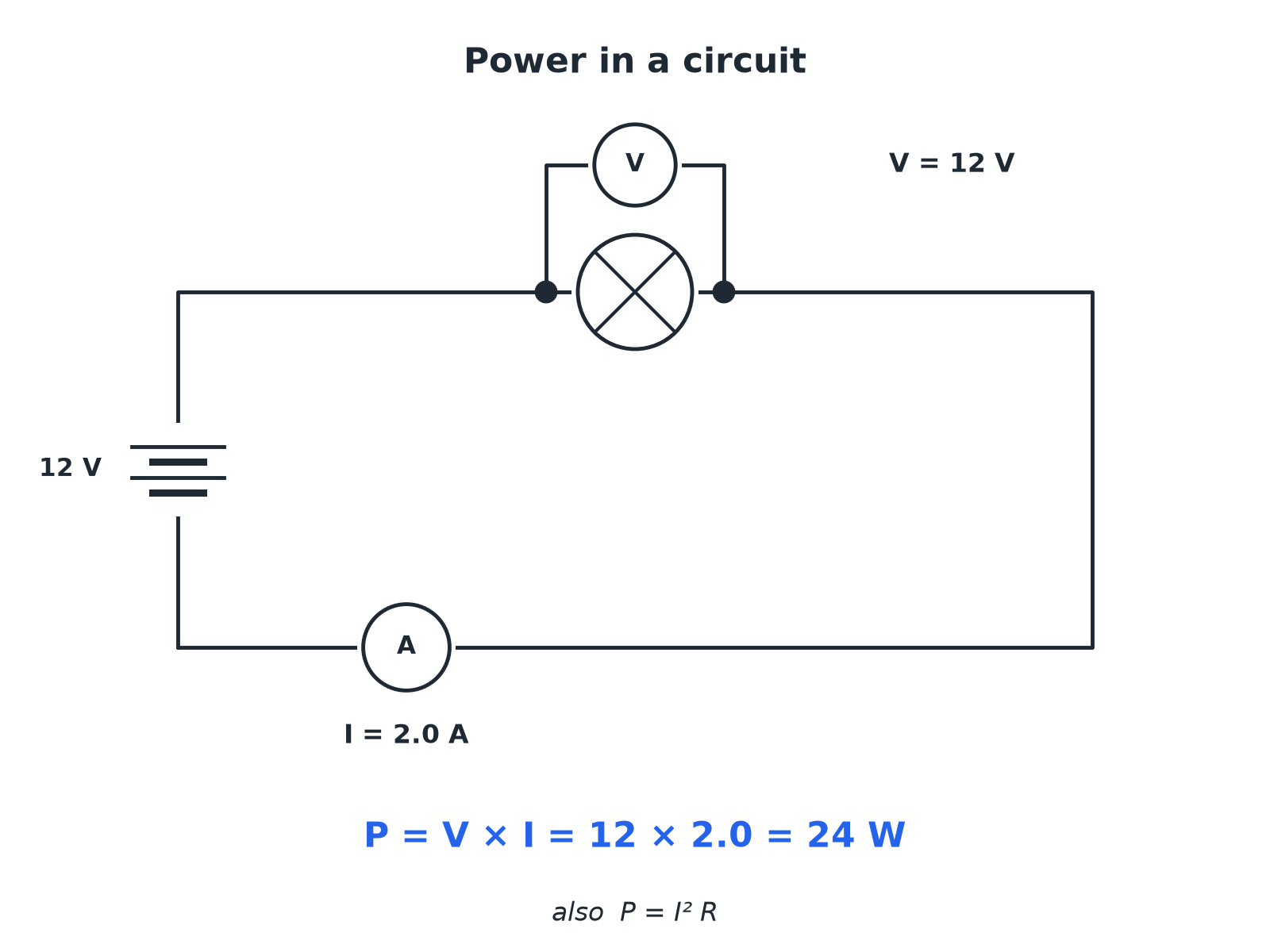

A device with a bigger pd or current has a greater power.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Using P = VI

Electricity

Lesson 6 of 10

A kettle has a current of 10 A when connected to the 230 V mains. Calculate its power.

1

Write the equation

P = VI

2

Substitute

P = 230 × 10

3

Answer

P = 2300 W

ANSWER

2300 W (2.3 kW)

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Using P = I²R

Electricity

Lesson 6 of 10

A current of 6.0 A flows through a 5.0 Ω resistor. Calculate the power.

1

Write the equation

P = I²R

2

Square the current first

6.0² = 36

3

Substitute

P = 36 × 5.0

4

Answer

P = 180 W

ANSWER

180 W

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Finding the Current

Electricity

Lesson 6 of 10

A 60 W lamp is connected to the 230 V mains. Calculate the current.

1

Rearrange

I = P ÷ V

2

Substitute

I = 60 ÷ 230

3

Answer

I = 0.26 A

ANSWER

0.26 A

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Which Equation?

Electricity

Lesson 6 of 10

Look at what you are given.

You have

Use

V and I

P = VI

I and R

P = I²R

V and R

Find I first with I = V ÷ R, then P = VI

E and t

P = E ÷ t

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Common Mistakes

Electricity

Lesson 6 of 10

Take care with squares.

Squaring

Square only the current, then multiply by the resistance.

Units

Convert mA to A and kW to W first.

Rating labels

The power rating of an appliance is at its normal pd.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Key Terms

Electricity

Lesson 6 of 10

Power

The rate at which energy is transferred.

Watt

One joule per second.

Power rating

The power an appliance transfers in normal use.

Kilowatt

1000 watts.

Potential difference

Energy transferred per coulomb of charge.

Current

The rate of flow of charge.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Electricity

Lesson 6 of 10

YOUR TASK

Rating Plate

10 minutes

A hair dryer is rated 1500 W at 230 V. Calculate the current. A toaster takes 4.0 A at 230 V; find its power.

1

Rearrange P = VI for current.

2

Then calculate the toaster power.

WHAT A GOOD ANSWER SHOWS

Hair dryer: 1500 ÷ 230 = 6.5 A. Toaster: 230 × 4.0 = 920 W.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Can I...?

Electricity

Lesson 6 of 10

Recall P = VI.

Recall P = I²R.

Choose the right equation.

Rearrange for current.

Square the current correctly.

Convert units to W and A.

Explain what power means.

Give the unit.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Summary & Exam Focus

P = VI.

P = I²R.

Power is in watts.

Higher power means faster energy transfer.

EXAM FOCUS

A kettle draws 10 A from the 230 V mains. Calculate its power. (2 marks)

Choose P = VI, substitute and give W.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Exam Practice: Electrical power

Electricity

Lesson 6 of 10

Answer all questions. Use the mark allocation as a guide to how much to write. · 15 minutes

Question 1 · 2 marks · Calculate

A kettle is connected to the 230 V mains and the current is 10 A. Calculate the power of the kettle. Use the equation: power = potential…

Question 2 · 3 marks · Calculate

A current of 6.0 A flows through a resistor of resistance 5.0 Ω. Calculate the power. Use the equation: power = (current)² × resistance

Question 3 · 3 marks · Calculate

A lamp has a power of 60 W and works at 230 V. Calculate the current in the lamp.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Exam Practice: Electrical power (cont.)

Electricity

Lesson 6 of 10

Question 4 · 2 marks · Explain

A student says that the power of a device only depends on the current. Explain why the student is not correct.

Question 5 · 4 marks · Calculate

An electric heater has a resistance of 46 Ω and is connected to a 230 V supply. Calculate the power of the heater.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 1 · 2 marks · Calculate

Electricity

Lesson 6 of 10

“

A kettle is connected to the 230 V mains and the current is 10 A. Calculate the power of the kettle. Use the equation: power = potential difference × current

HOW TO ANSWER IT

Command word: Calculate. Worth 2 marks, so plan before writing.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 1 · mark scheme

Electricity

Lesson 6 of 10

2 marks available. Award a mark for each point made.

Correct substitution

1 mark

2300 W

1 mark

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 2 · 3 marks · Calculate

Electricity

Lesson 6 of 10

“

A current of 6.0 A flows through a resistor of resistance 5.0 Ω. Calculate the power. Use the equation: power = (current)² × resistance

HOW TO ANSWER IT

Command word: Calculate. Worth 3 marks, so plan before writing.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 2 · mark scheme

Electricity

Lesson 6 of 10

3 marks available. Award a mark for each point made.

Squares the current

1 mark

Correct substitution

1 mark

180 W

1 mark

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 3 · 3 marks · Calculate

Electricity

Lesson 6 of 10

“

A lamp has a power of 60 W and works at 230 V. Calculate the current in the lamp.

HOW TO ANSWER IT

Command word: Calculate. Worth 3 marks, so plan before writing.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 3 · mark scheme

Electricity

Lesson 6 of 10

3 marks available. Award a mark for each point made.

Rearranges to I = P ÷ V

1 mark

Correct substitution

1 mark

0.26 A

1 mark

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 4 · 2 marks · Explain

Electricity

Lesson 6 of 10

“

A student says that the power of a device only depends on the current. Explain why the student is not correct.

HOW TO ANSWER IT

Command word: Explain. Worth 2 marks, so plan before writing.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 4 · mark scheme

Electricity

Lesson 6 of 10

2 marks available. Award a mark for each point made.

Power = V × I

1 mark

Depends on pd (or resistance) as well as current

1 mark

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 5 · 4 marks · Calculate

Electricity

Lesson 6 of 10

“

An electric heater has a resistance of 46 Ω and is connected to a 230 V supply. Calculate the power of the heater.

HOW TO ANSWER IT

Command word: Calculate. Worth 4 marks, so plan before writing.

openrevise.com

AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

Question 5 · mark scheme

Electricity

Lesson 6 of 10

4 marks available. Award a mark for each point made.

Rearranges V = IR

1 mark

5.0 A

1 mark

Correct substitution into P = VI

1 mark

1150 W

1 mark
