Pressure in a fluid.pptx

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Pressure in a fluid

Forces

Lesson 7 of 20

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Warm-up

Forces

Lesson 7 of 20

Answer each one, then check.

1

What is area?

2

What is the unit of area?

3

What is a fluid?

4

What is the unit of force?

5

What is the unit of pressure?

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Warm-up - Answers

Forces

Lesson 7 of 20

1

What is area?

The amount of surface

2

What is the unit of area?

Square metres (m²)

3

What is a fluid?

A liquid or a gas

4

What is the unit of force?

Newton

5

What is the unit of pressure?

Pascal (Pa)

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Learning Objectives

Forces

Lesson 7 of 20

1

Define pressure and recall that a fluid can be a liquid or a gas.

2

Recall and apply p = F ÷ A.

3

Explain that pressure in a fluid causes a force at right angles to any surface.

4

Explain examples where force is spread over a large or small area.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Forces

Lesson 7 of 20

PRESSURE

pressure = force normal to a surface ÷ area of that surface p = F/A

Pressure is in pascals (Pa), force in newtons (N) and area in square metres (m²). 1 Pa = 1 N/m².

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

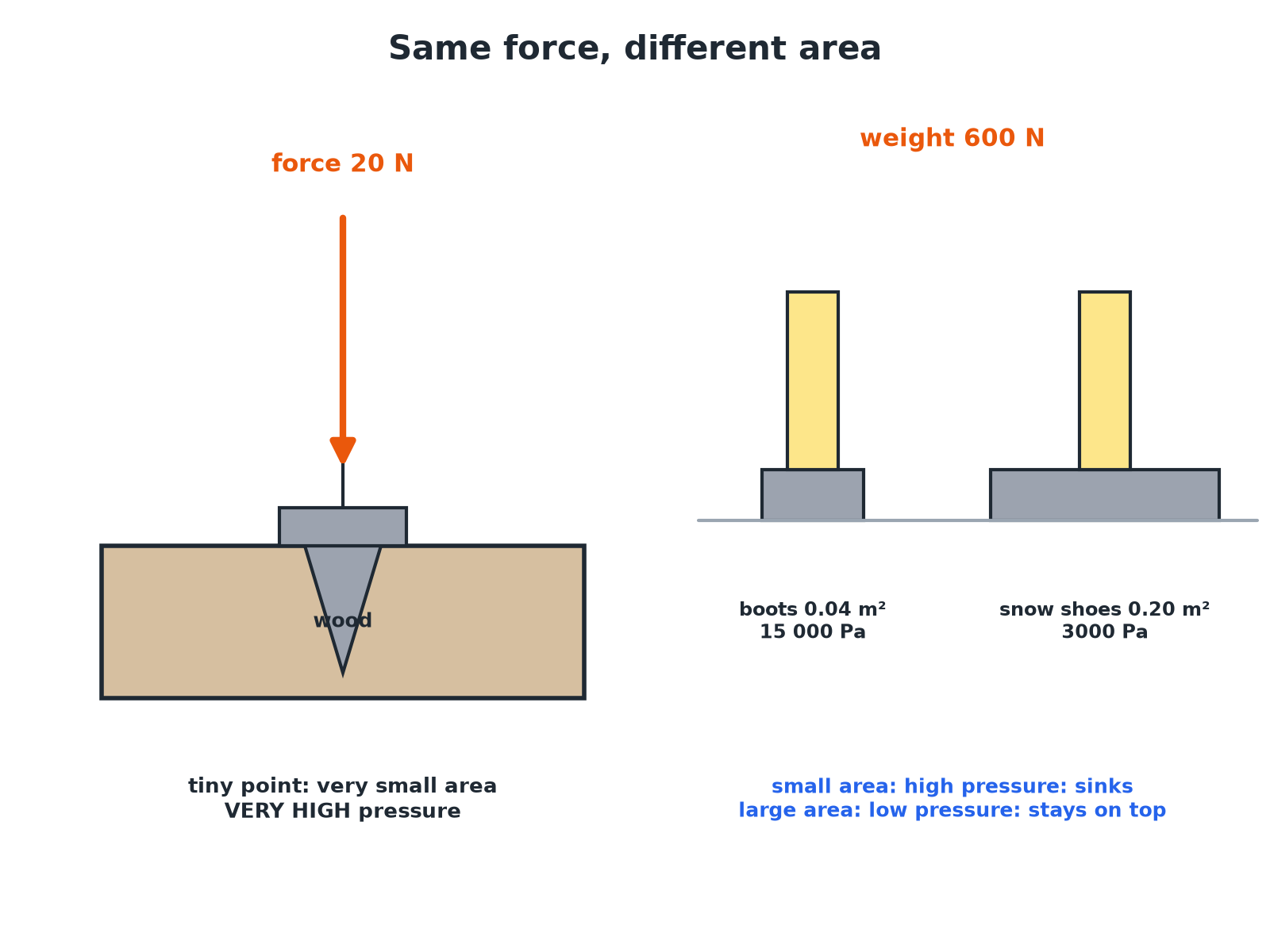

Same Force, Different Pressure

Forces

Lesson 7 of 20

A smaller area gives a greater pressure for the same force.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Calculating Pressure

Forces

Lesson 7 of 20

A person of weight 600 N stands on an area of 0.04 m². Calculate the pressure on the ground.

1

Write the equation

p = F ÷ A

2

Substitute

p = 600 ÷ 0.04

3

Answer

p = 15 000 Pa

ANSWER

15 000 Pa

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Finding the Force

Forces

Lesson 7 of 20

A pressure of 2000 Pa acts on a surface of area 0.50 m². Calculate the force.

1

Rearrange

F = pA

2

Substitute

F = 2000 × 0.50

3

Answer

F = 1000 N

ANSWER

1000 N

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Explaining Everyday Examples

Forces

Lesson 7 of 20

Explain why a sharp knife cuts better than a blunt one.

1

Same force

The same force is applied to both

2

Sharp edge

Has a very small area

3

Pressure

A small area gives a large pressure, so it cuts

ANSWER

The sharp knife has a smaller area, so for the same force it exerts a higher pressure.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Pressure in Fluids

Forces

Lesson 7 of 20

Liquids and gases.

Direction

Pressure in a fluid causes a force normal (at right angles) to any surface.

Gases

Produced by collisions of particles with surfaces.

Liquids

Particles collide with the container walls in all directions.

Uses

Tyres, hydraulics and sealed containers use fluid pressure.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Key Terms

Forces

Lesson 7 of 20

Pressure

Force per unit area.

Pascal

The unit of pressure; 1 N/m².

Fluid

A liquid or a gas.

Normal

At right angles to a surface.

Area

The size of a surface.

Force

A push or pull.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Forces

Lesson 7 of 20

YOUR TASK

Shoe Pressure

10 minutes

A 500 N person wears stiletto heels of total area 0.0004 m² and then flat shoes of area 0.04 m². Calculate the pressure each exerts and explain which damages a floor.

1

Calculate each pressure.

2

Compare.

WHAT A GOOD ANSWER SHOWS

Heels: 500 ÷ 0.0004 = 1 250 000 Pa. Flat: 500 ÷ 0.04 = 12 500 Pa. The heels exert 100 times more pressure, so they damage the floor.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Can I...?

Forces

Lesson 7 of 20

Define pressure.

Use p = F ÷ A.

Rearrange for force or area.

Convert cm² to m².

Explain sharp and blunt objects.

Explain wide tyres.

State the direction of fluid pressure.

Give the unit.

openrevise.com

AQA GCSE PHYSICS · PAPER 2 · FOUNDATION & HIGHER

Summary & Exam Focus

p = F ÷ A.

Smaller area, larger pressure.

Fluid pressure acts at right angles to surfaces.

1 Pa = 1 N/m².

EXAM FOCUS

A person of weight 600 N stands on 0.04 m² of ground. Calculate the pressure. (2 marks)

Divide force by area.
