Maths · Transformations and constructions

Enlargement

Enlarge shapes by a scale factor from a centre, including fractional scale factors, describe enlargements, and at Higher tier use negative scale factors and the effect on area and volume.

  • 6 key terms
  • All boards
Download the full pack · 3 files

Warm-up

Answer each one, then check.

  1. 1

    What is \(3 \times 4\)?

    Show answerHide answer

    12

  2. 2

    Work out \(\dfrac{1}{2} \times 8\).

    Show answerHide answer

    4

  3. 3

    What is the area of a rectangle 3 by 5?

    Show answerHide answer

    15

  4. 4

    What is the scale factor from 4 cm to 12 cm?

    Show answerHide answer

    3

  5. 5

    What does congruent mean?

    Show answerHide answer

    The same shape and size

Learning Objectives

  1. 1Enlarge a shape by a positive scale factor from a centre.
  2. 2Use fractional scale factors.
  3. 3Describe an enlargement fully.
  4. 4Use negative scale factors and similar-shape area and volume ratios (Higher).

THE KEY IDEA

An enlargement changes the size of a shape but not its shape: every length is multiplied by the scale factor.

The centre of enlargement stays in the same place.

How to Enlarge a Shape

Work from the centre to each vertex.

  1. 1 Pick the centre

    It is given, or found where lines through matching points meet.
  2. 2 Measure to a vertex

    Count squares across and up from the centre.
  3. 3 Multiply by the scale factor

    Multiply both distances.
  4. 4 Plot the new vertex

    Start again from the centre.
  5. 5 Join up

    Join the new vertices to make the image.

Enlarging from the Origin

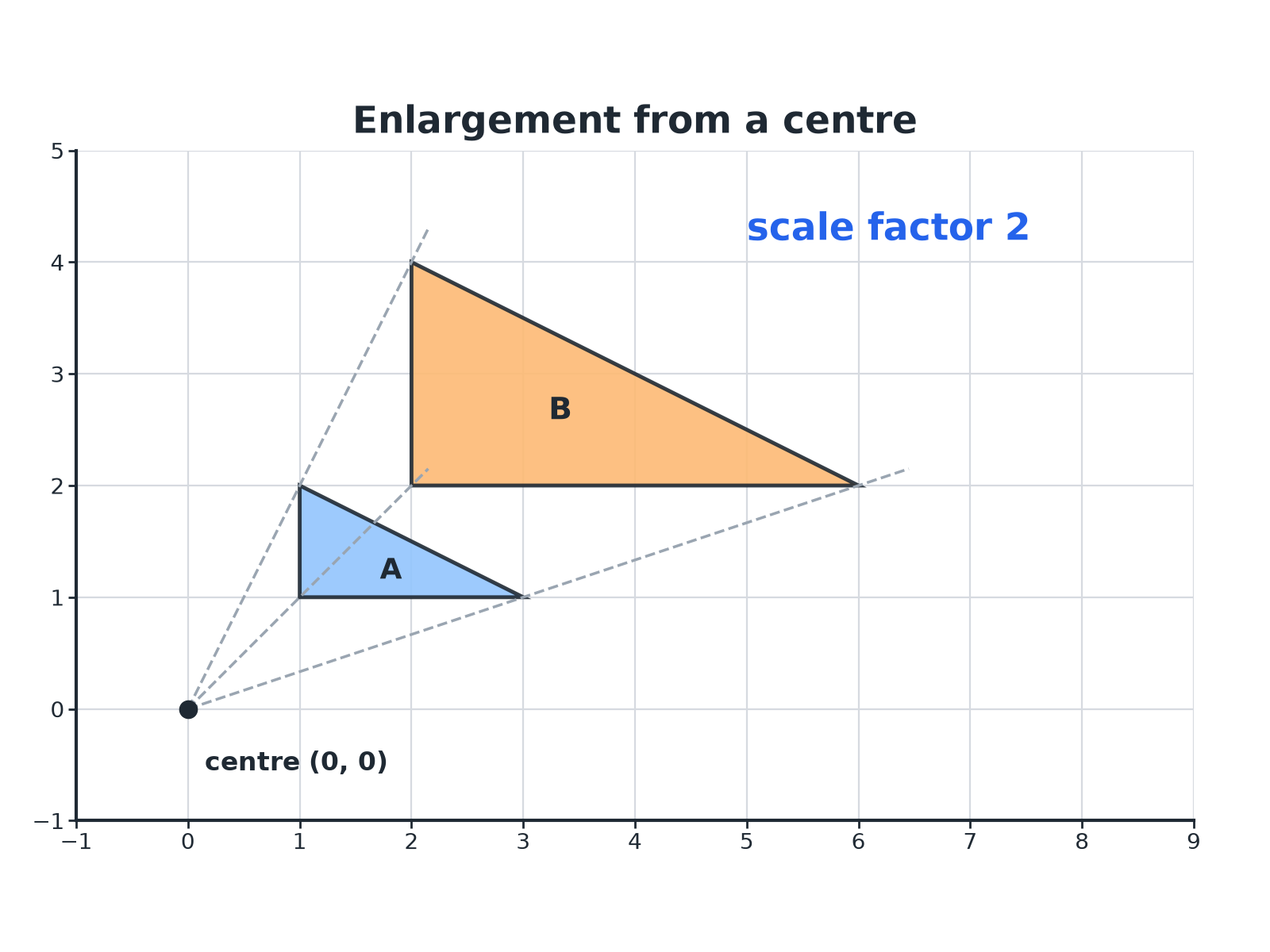

Triangle A has vertices \((1, 1)\), \((3, 1)\) and \((1, 2)\). Enlarge it by scale factor 2 with centre \((0, 0)\).

Show the solutionHide the solution
  1. 1 Multiply each coordinate by 2 \((1, 1) \to (2, 2)\)
  2. 2 The other vertices \((3, 1) \to (6, 2)\) and \((1, 2) \to (2, 4)\)

AnswerThe image has vertices \((2, 2)\), \((6, 2)\) and \((2, 4)\).

Enlarging from Another Centre

A triangle has vertices \((2, 2)\), \((4, 2)\) and \((2, 3)\). Enlarge it by scale factor 2 about the centre \((1, 1)\).

Show the solutionHide the solution
  1. 1 Vector from the centre to the first vertex \((2, 2) - (1, 1) = (1, 1)\)
  2. 2 Multiply by 2 \((2, 2)\)
  3. 3 Add back to the centre \((1 + 2, 1 + 2) = (3, 3)\)
  4. 4 The other vertices \((4, 2)\): vector \((3, 1)\), doubled \((6, 2)\), so \((7, 3)\); \((2, 3)\): vector \((1, 2)\), doubled \((2, 4)\), so \((3, 5)\)

AnswerThe image has vertices \((3, 3)\), \((7, 3)\) and \((3, 5)\).

A Fractional Scale Factor

Enlarge the triangle with vertices \((2, 4)\), \((6, 4)\) and \((2, 8)\) by scale factor \(\dfrac{1}{2}\) with centre \((0, 0)\).

Show the solutionHide the solution
  1. 1 Multiply each coordinate by \(\dfrac{1}{2}\) \((2, 4) \to (1, 2)\)
  2. 2 The other vertices \((6, 4) \to (3, 2)\) and \((2, 8) \to (1, 4)\)

AnswerThe image has vertices \((1, 2)\), \((3, 2)\) and \((1, 4)\); it is smaller than the original.

Scale Factor Sizes

Scale factor greater than 1

  • The image is bigger than the object.
  • Lengths are multiplied by the scale factor.
  • Example: scale factor 3 makes every side three times as long.

Scale factor between 0 and 1

  • The image is smaller than the object.
  • Still called an enlargement.
  • Example: scale factor \(\dfrac{1}{2}\) halves every length.

A Negative Scale Factor

Enlarge the point \((1, 2)\) by scale factor \(-2\) about the origin.

Show the solutionHide the solution
  1. 1 Multiply the coordinates by \(-2\) \((1, 2) \to (-2, -4)\)
  2. 2 The image is on the opposite side of the centre And twice as far away

Answer\((-2, -4)\)

Lengths, Areas and Volumes

For similar shapes with length scale factor \(k\).

  • Lengths

    Scale factor: \(k\)

  • Areas

    Scale factor: \(k^2\)

  • Volumes

    Scale factor: \(k^3\)

Area and Volume Scale Factors

Two similar bottles have heights 6 cm and 9 cm. The label of the smaller bottle has area 20 cm². Find the label area on the larger bottle. The smaller bottle holds 250 ml; find the capacity of the larger.

Show the solutionHide the solution
  1. 1 Length scale factor \(9 \div 6 = 1.5\)
  2. 2 Area scale factor \(1.5^2 = 2.25\), so \(20 \times 2.25 = 45\)
  3. 3 Volume scale factor \(1.5^3 = 3.375\), so \(250 \times 3.375 = 843.75\)

AnswerLabel area 45 cm² and capacity 843.75 ml.

Describe the Enlargement

Triangle P has vertices \((2, 1)\), \((4, 1)\) and \((2, 4)\). Triangle Q has vertices \((4, 2)\), \((8, 2)\) and \((4, 8)\). Describe fully the single transformation that maps P onto Q. Then find the ratio of their areas.

1. Compare corresponding side lengths.

2. Draw rays to find the centre.

3. Compare areas.

A good answer shows: Enlargement, scale factor 2, centre \((0, 0)\). The area of P is 3 and the area of Q is 12, a ratio of \(1:4\), which is \(2^2\).

Can I...?

  1. 1Enlarge from the origin.
  2. 2Enlarge from another centre.
  3. 3Use a fractional scale factor.
  4. 4Describe an enlargement fully.
  5. 5Find the centre using rays.
  6. 6Use a negative scale factor (Higher).
  7. 7Use \(k^2\) for areas (Higher).
  8. 8Use \(k^3\) for volumes (Higher).

Summary & Exam Focus

  • Every length is multiplied by the scale factor.
  • Scale factors below 1 make the image smaller.
  • To describe: enlargement, scale factor, centre.
  • Higher: areas scale by \(k^2\) and volumes by \(k^3\).

Exam focus

Describe fully the single transformation that maps triangle P onto triangle Q, where P has vertices \((2, 1)\), \((4, 1)\), \((2, 4)\) and Q has vertices \((4, 2)\), \((8, 2)\), \((4, 8)\). (3 marks) (3 marks)

For an enlargement give three things: the word enlargement, the scale factor, and the centre.

Key terms

The vocabulary this lesson expects you to use. Each one is linked from the first place it appears above.

Enlargement
A transformation that changes the size of a shape by a scale factor.
Scale factor
The number every length is multiplied by.
Centre of enlargement
The fixed point the enlargement is measured from.
Similar
The same shape but a different size.
Ray
A straight line drawn from the centre through a vertex.
Congruent
The same shape and size.

Practice questions

Have a go at each one before you open its answer.

  1. Question 1 Non-calculator 2 marks

    Triangle A has vertices \((1, 1)\), \((3, 1)\) and \((1, 2)\). It is enlarged by scale factor 2 with centre \((0, 0)\). Write down the coordinates of the vertices of the image.

    Show answerHide answer

    Model answer

    \((2, 2)\), \((6, 2)\) and \((2, 4)\).

    Mark scheme

    • Two vertices correct — B1
    • All three correct — B1
  2. Question 2 Non-calculator 2 marks

    A rectangle measures 3 cm by 5 cm. It is enlarged by scale factor 4. Write down the dimensions of the enlarged rectangle.

    Show answerHide answer

    Model answer

    12 cm by 20 cm.

    Mark scheme

    • One length correct — M1
    • Both correct — A1
  3. Question 3 Non-calculator 3 marks

    A triangle has vertices \((2, 2)\), \((4, 2)\) and \((2, 3)\). It is enlarged by scale factor 2 with centre \((1, 1)\). Write down the coordinates of the vertices of the image.

    Show answerHide answer

    Model answer

    \((3, 3)\), \((7, 3)\) and \((3, 5)\).

    Mark scheme

    • A correct method: vector from the centre doubled — M1
    • Two vertices correct — A1
    • All three correct — A1
  4. Question 4 Non-calculator 3 marks

    Triangle Q is an enlargement of triangle P. Describe fully the single transformation that maps P onto Q.

    A small triangle P and a larger similar triangle Q that is twice its size, both on a grid.
    Show answerHide answer

    Model answer

    An enlargement with scale factor 2 and centre \((0, 0)\).

    Mark scheme

    • Enlargement — B1
    • Scale factor 2 — B1
    • Centre \((0, 0)\) — B1
  5. Question 5 Non-calculator 3 marks

    Two similar vases have heights 6 cm and 9 cm. The surface area of the smaller vase is 20 cm². Work out the surface area of the larger vase.

    Show answerHide answer

    Model answer

    The length scale factor is \(\dfrac{9}{6} = 1.5\). The area scale factor is \(1.5^2 = 2.25\). The area is \(20 \times 2.25 = 45\) cm².

    Mark scheme

    • Length scale factor 1.5 — M1
    • \(1.5^2\) — M1
    • 45 — A1
  6. Question 6 Calculator 3 marks

    A model of a ship is made to a scale of 1 : 5. The volume of the model is 250 cm³. Work out the volume of the real ship in cm³.

    Show answerHide answer

    Model answer

    The length scale factor is 5, so the volume scale factor is \(5^3 = 125\). The real volume is \(250 \times 125 = 31\,250\) cm³.

    Mark scheme

    • Length scale factor 5 — M1
    • \(5^3 = 125\) — M1
    • 31 250 — A1

Quick check

  1. A triangle is enlarged by scale factor 3. A side of length 4 cm becomes...

    1. A7 cm
    2. B1.3 cm
    3. C12 cm
    4. D64 cm
    Show answerHide answer

    C: 12 cm

    \(4 \times 3 = 12\) cm.

  2. A shape is enlarged by scale factor \(\dfrac{1}{2}\). The image is...

    1. ABigger
    2. BSmaller
    3. CThe same size
    4. DUpside down
    Show answerHide answer

    B: Smaller

    A scale factor less than 1 makes the shape smaller.

  3. What is the image of \((3, 2)\) under enlargement scale factor 3, centre the origin?

    1. A\((6, 5)\)
    2. B\((3, 6)\)
    3. C\((9, 2)\)
    4. D\((9, 6)\)
    Show answerHide answer

    D: \((9, 6)\)

    Multiply both coordinates by 3.

  4. To describe an enlargement fully you need...

    1. AThe scale factor and the centre
    2. BThe mirror line
    3. CThe angle and direction
    4. DThe vector
    Show answerHide answer

    A: The scale factor and the centre

    The scale factor and the centre of enlargement.

  5. Two similar shapes have length scale factor 3. What is the area scale factor?

    1. A3
    2. B6
    3. C9
    4. D27
    Show answerHide answer

    C: 9

    Area scales by the square of the length scale factor: 9.

  6. Two similar solids have length scale factor 2. What is the volume scale factor?

    1. A4
    2. B8
    3. C6
    4. D2
    Show answerHide answer

    B: 8

    \(2^3 = 8\).
