Slides · PPTX · 186 KB · 26 slides
Radioactive decay and nuclear radiation - Teacher Slides.pptx
The lesson slides with the teacher's notes on each slide, and every question and mark scheme built in. Built from the lesson script on 30 September 2026.
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Radioactive decay and nuclear radiation
Atomic structure
Lesson 4 of 10
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Warm-up
Atomic structure
Lesson 4 of 10
Answer each one, then check.
1
What is an unstable nucleus?
2
What is an ion?
3
What is a Geiger-Müller tube used for?
4
What is a helium nucleus made of?
5
What is the unit of activity?
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Warm-up - Answers
Atomic structure
Lesson 4 of 10
1
What is an unstable nucleus?
A nucleus that will change to become more stable
2
What is an ion?
A charged atom
3
What is a Geiger-Müller tube used for?
Detecting radiation
4
What is a helium nucleus made of?
Two protons and two neutrons
5
What is the unit of activity?
The becquerel (Bq)
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Learning Objectives
Atomic structure
Lesson 4 of 10
1
Describe radioactive decay as a random process.
2
Define activity and count rate.
3
Name the types of nuclear radiation and describe them.
4
Compare alpha, beta and gamma in penetration, range in air and ionising power, and apply this to uses.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Atomic structure
Lesson 4 of 10
RADIOACTIVE DECAY
Some atomic nuclei are unstable. The nucleus gives out radiation as it changes to become more stable: this is radioactive decay, and it is a random process.
Activity is the rate at which a source decays, measured in becquerel (Bq). Count rate is the number of decays recorded each second by a detector.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER

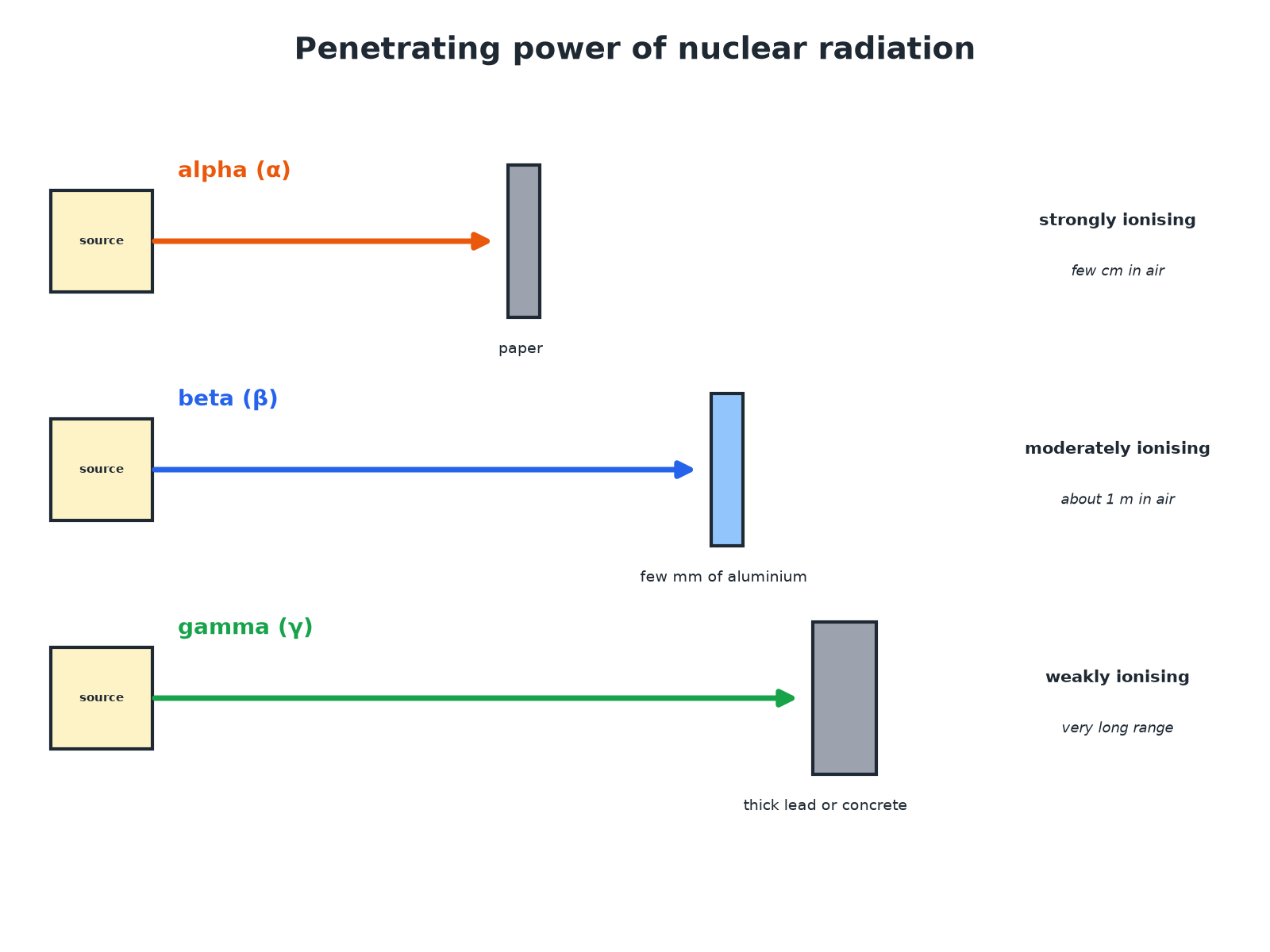

Penetrating Power
Atomic structure
Lesson 4 of 10
The more ionising, the less penetrating.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Types of Radiation
Atomic structure
Lesson 4 of 10
Learn the properties.
Radiation
What it is
Stopped by
Range in air
Ionising power
Alpha (α)
Two protons and two neutrons (a helium nucleus)
A sheet of paper or a few cm of air
A few cm
Strongly ionising
Beta (β)
A high-speed electron from a neutron changing into a proton
A few mm of aluminium
About 1 m
Moderately ionising
Gamma (γ)
Electromagnetic radiation from the nucleus
Thick lead or several metres of concrete
Very long
Weakly ionising
Neutron (n)
A neutron from the nucleus
Thick concrete or water
Long
Indirectly ionising
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Choosing a Source
Atomic structure
Lesson 4 of 10
Which radiation would you use for a smoke detector, and why?
1
Detector
Uses alpha radiation ionising the air between two plates to make a small current
2
Why alpha
It is strongly ionising but stopped by paper, so is safe outside the detector
3
Smoke
Absorbs the alpha particles, the current falls and the alarm sounds
ANSWER
Alpha: it ionises air strongly (to give a current) but cannot escape the device.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Monitoring Thickness
Atomic structure
Lesson 4 of 10
Which radiation could be used to monitor the thickness of aluminium foil? Explain.
1
Alpha
Absorbed completely by the foil: no use
2
Gamma
Passes through almost unchanged, so the thickness has little effect
3
Beta
Partly absorbed: the count on the other side changes with thickness
ANSWER
Beta radiation: it is partly absorbed by thin foil, so changes in the count rate show changes in thickness.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Key Ideas
Atomic structure
Lesson 4 of 10
Getting the exam points.
Random
It is not possible to predict when a particular nucleus will decay.
Activity or count rate
Activity in becquerel (Bq); count rate is the number of counts per second on a detector.
Ionising
Radiation that removes electrons from atoms to make ions can damage living cells.
Choose the radiation
Match penetration and ionising power to the job, and think about safety.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Key Terms
Atomic structure
Lesson 4 of 10
Radioactive decay
The random process in which an unstable nucleus emits radiation.
Activity
The rate at which a source decays, in becquerel.
Count rate
Number of decays detected each second.
Ionising
Able to knock electrons off atoms.
Alpha particle
Two protons and two neutrons.
Gamma ray
Electromagnetic radiation from the nucleus.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Atomic structure
Lesson 4 of 10
YOUR TASK
Which Radiation?
12 minutes
For each use, choose alpha, beta or gamma and explain: (a) a smoke detector, (b) checking for a leak in an underground pipe using a tracer, (c) monitoring the thickness of paper in a factory.
1
Match penetration to the job.
2
Consider safety.
WHAT A GOOD ANSWER SHOWS
(a) Alpha: strongly ionising, stopped by paper. (b) Gamma: penetrates soil and can be detected above ground. (c) Beta: partly absorbed by paper so the count changes with thickness.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Can I...?
Atomic structure
Lesson 4 of 10
Define radioactive decay.
Say decay is random.
Define activity and count rate.
Describe alpha, beta and gamma.
State what stops each.
Compare ionising powers.
Choose a source for a use.
Explain a choice.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Summary & Exam Focus
Alpha: helium nucleus; beta: fast electron; gamma: EM wave.
Penetration: alpha < beta < gamma.
Ionising power: alpha > beta > gamma.
Activity in Bq; count rate per second.
EXAM FOCUS
Describe what an alpha particle is. (1 mark)
Two protons and two neutrons.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Exam Practice: Radioactive decay and nuclear radiation
Atomic structure
Lesson 4 of 10
Answer all questions. Use the mark allocation as a guide to how much to write. · 18 minutes
Question 1 · 2 marks · State
Describe what an alpha particle is and what a gamma ray is.
Question 2 · 3 marks · Complete
Complete the sentences. Alpha radiation is stopped by a ______. Beta radiation is stopped by a few millimetres of ______. Gamma radiation…
Question 3 · 3 marks · Explain
A smoke detector contains a source of alpha radiation. Explain why alpha radiation is used and not gamma radiation.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Exam Practice: Radioactive decay and nuclear radiation (cont.)
Atomic structure
Lesson 4 of 10
Question 4 · 3 marks · Explain
A factory monitors the thickness of aluminium foil by measuring the radiation that passes through it. Explain why a source of beta…
Question 5 · 6 marks · Evaluate
Radioactive sources are used in industry and medicine. Compare the properties of alpha, beta and gamma radiation and evaluate which is best…
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Question 1 · 2 marks · State
Atomic structure
Lesson 4 of 10
“
Describe what an alpha particle is and what a gamma ray is.
HOW TO ANSWER IT
Command word: State. Worth 2 marks, so plan before writing.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Question 1 · mark scheme
Atomic structure
Lesson 4 of 10
2 marks available. Award a mark for each point made.
Alpha: two protons and two neutrons
1 mark
Gamma: electromagnetic radiation
1 mark
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Question 2 · 3 marks · Complete
Atomic structure
Lesson 4 of 10
“
Complete the sentences. Alpha radiation is stopped by a ______. Beta radiation is stopped by a few millimetres of ______. Gamma radiation is reduced by thick ______.
HOW TO ANSWER IT
Command word: Complete. Worth 3 marks, so plan before writing.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Question 2 · mark scheme
Atomic structure
Lesson 4 of 10
3 marks available. Award a mark for each point made.
Paper
1 mark
Aluminium
1 mark
Lead or concrete
1 mark
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Question 3 · 3 marks · Explain
Atomic structure
Lesson 4 of 10
“
A smoke detector contains a source of alpha radiation. Explain why alpha radiation is used and not gamma radiation.
HOW TO ANSWER IT
Command word: Explain. Worth 3 marks, so plan before writing.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Question 3 · mark scheme
Atomic structure
Lesson 4 of 10
3 marks available. Award a mark for each point made.
Alpha strongly ionising
1 mark
Stopped by paper or air so safe
1 mark
Gamma penetrates and weakly ionising
1 mark
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Question 4 · 3 marks · Explain
Atomic structure
Lesson 4 of 10
“
A factory monitors the thickness of aluminium foil by measuring the radiation that passes through it. Explain why a source of beta radiation is used and not alpha or gamma radiation.
HOW TO ANSWER IT
Command word: Explain. Worth 3 marks, so plan before writing.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Question 4 · mark scheme
Atomic structure
Lesson 4 of 10
3 marks available. Award a mark for each point made.
Alpha absorbed completely
1 mark
Gamma passes through unchanged
1 mark
Beta partly absorbed so count rate shows the thickness
1 mark
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Question 5 · 6 marks · Evaluate
Atomic structure
Lesson 4 of 10
“
Radioactive sources are used in industry and medicine. Compare the properties of alpha, beta and gamma radiation and evaluate which is best to use as a tracer inside the body.
HOW TO ANSWER IT
Command word: Evaluate. Worth 6 marks, so plan before writing.
openrevise.com
AQA GCSE PHYSICS · PAPER 1 · FOUNDATION & HIGHER
Question 5 · mark scheme
Atomic structure
Lesson 4 of 10
6 marks available. Award a mark for each point made.
Level 3 (5 to 6 marks): properties of all three (penetration, range, ionising power), the tracer needs to pass out of the body to be detected outside, and a justified conclusion that gamma is best
5 to 6 marks
Level 2 (3 to 4 marks): properties of at least two types with some link to use as a tracer
3 to 4 marks
Level 1 (1 to 2 marks): simple statements about the radiation
1 to 2 marks
openrevise.com
